V SHARP END
HT&FST
2205CBM24X300
| Size: | |
|---|---|
| Availability: | |
| Quantity: | |

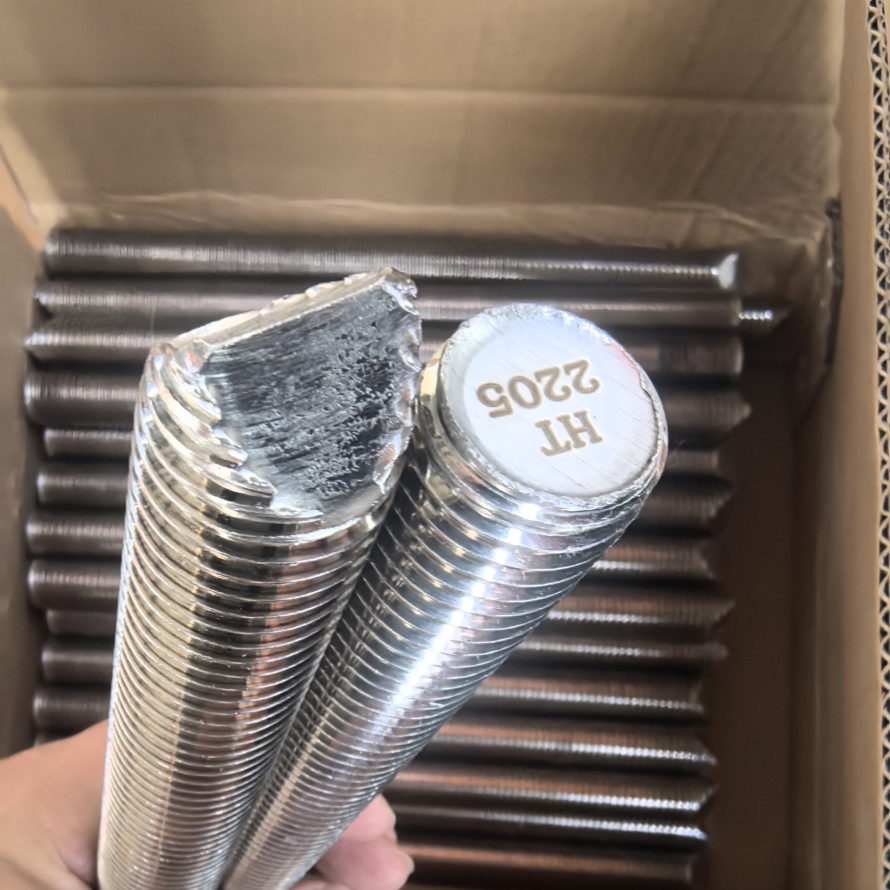

2205 Chemical Bolt
Name | 2205 Chemical Bolt |
Standard | V sharp end 45 degree |
Size Range | M6-M36 |
Finish | Bright&Clean |
Marking | HT&FST or customization |
Material | Duplex 2205,UNS S32205,F51,1.4462 |
Grade | Grade 80 |
Certificates | EN10204-3.1B |
Non-standards | OEM is available, according to drawing or samples |
Samples | Samples available |
Package | Bulk in box and then in cartons, then on pallets, or according to customers' requirement. |
| Payment | T/T,Western Union |
Duplex 2205
UNS | ID | JIS | W.Nr |
| S31803 | F51 | SUS32953L | 1.4462 |
Chemical composition of stainless steel 2205 bolts
| Alloy | % | Ni | Cr | Fe | Mo | N | C | Mn | Si | S | P |
| 2205 | Min. | 4.5 | 21 | Bal | 2.5 | 0.08 | |||||
| Min. | 6.5 | 23 | 3.5 | 0.2 | 0.03 | 2 | 1 | 0.02 | 0.03 |
Minimum mechanical properties of stainless steel 2205 bolts alloy at room temperature
| Tensile strength Rm N/mm2 | Yield strength RP0.2 N/mm2 | Elongation rate A5% | Brinell hardness HB |
| 620 | 450 | 25 | 290 |
All grade we can supply
| Material | SS304 ,316,316L ,316LN,316 Lmod,316Ti,317L, 317LN, 321,310S, 904L 254SMO AL-6XN,1.4529 |
| Duplex 2205/2507 | |
| Hastelloy C4, C22 , C276 , C2000, B2, B3 , G3 , G30 , Hastelloy X 2.4600 , 2.4602 , 2.4603 , 2.4610 , 2.4617 , 2.4619, 2.4665 , 2.4675 , 2.4819 | |
| Inconel600, 601 , 617 , 625 , 690 , 718 , 725 , X750 2.4669 , 2.4668 , 2.4816 , 2.4856 , 2.4851 , 2.4663 , 2.4642 | |
| Incoloy800/800H/800HT, Incoloy825 , 90 1, 925 , 926 , 1.4958 , 2.4662 , 1.4529 , 1.4876 , 2.4858 , 1.4959 | |
| Monelk500, Monel400; 2.4360 , 2.4375 | |
| Titanium Alloy GR2/5/7, 3.7035, 3.7165 , 3.7235 | |
| Urea steel 724L ,725LN ; 1.4435 , 1.4466 | |
| Alloy20, Alloy28, Alloy31, Alloy 286,Alloy 80A(nimonic 80A) 2.4660 , 1.4563 , 1.4562 , 1.4980 , 2.4952 |
2205 Chemical Bolt
Name | 2205 Chemical Bolt |
Standard | V sharp end 45 degree |
Size Range | M6-M36 |
Finish | Bright&Clean |
Marking | HT&FST or customization |
Material | Duplex 2205,UNS S32205,F51,1.4462 |
Grade | Grade 80 |
Certificates | EN10204-3.1B |
Non-standards | OEM is available, according to drawing or samples |
Samples | Samples available |
Package | Bulk in box and then in cartons, then on pallets, or according to customers' requirement. |
| Payment | T/T,Western Union |
Duplex 2205
UNS | ID | JIS | W.Nr |
| S31803 | F51 | SUS32953L | 1.4462 |
Chemical composition of stainless steel 2205 bolts
| Alloy | % | Ni | Cr | Fe | Mo | N | C | Mn | Si | S | P |
| 2205 | Min. | 4.5 | 21 | Bal | 2.5 | 0.08 | |||||
| Min. | 6.5 | 23 | 3.5 | 0.2 | 0.03 | 2 | 1 | 0.02 | 0.03 |
Minimum mechanical properties of stainless steel 2205 bolts alloy at room temperature
| Tensile strength Rm N/mm2 | Yield strength RP0.2 N/mm2 | Elongation rate A5% | Brinell hardness HB |
| 620 | 450 | 25 | 290 |
All grade we can supply
| Material | SS304 ,316,316L ,316LN,316 Lmod,316Ti,317L, 317LN, 321,310S, 904L 254SMO AL-6XN,1.4529 |
| Duplex 2205/2507 | |
| Hastelloy C4, C22 , C276 , C2000, B2, B3 , G3 , G30 , Hastelloy X 2.4600 , 2.4602 , 2.4603 , 2.4610 , 2.4617 , 2.4619, 2.4665 , 2.4675 , 2.4819 | |
| Inconel600, 601 , 617 , 625 , 690 , 718 , 725 , X750 2.4669 , 2.4668 , 2.4816 , 2.4856 , 2.4851 , 2.4663 , 2.4642 | |
| Incoloy800/800H/800HT, Incoloy825 , 90 1, 925 , 926 , 1.4958 , 2.4662 , 1.4529 , 1.4876 , 2.4858 , 1.4959 | |
| Monelk500, Monel400; 2.4360 , 2.4375 | |
| Titanium Alloy GR2/5/7, 3.7035, 3.7165 , 3.7235 | |
| Urea steel 724L ,725LN ; 1.4435 , 1.4466 | |
| Alloy20, Alloy28, Alloy31, Alloy 286,Alloy 80A(nimonic 80A) 2.4660 , 1.4563 , 1.4562 , 1.4980 , 2.4952 |
