Name

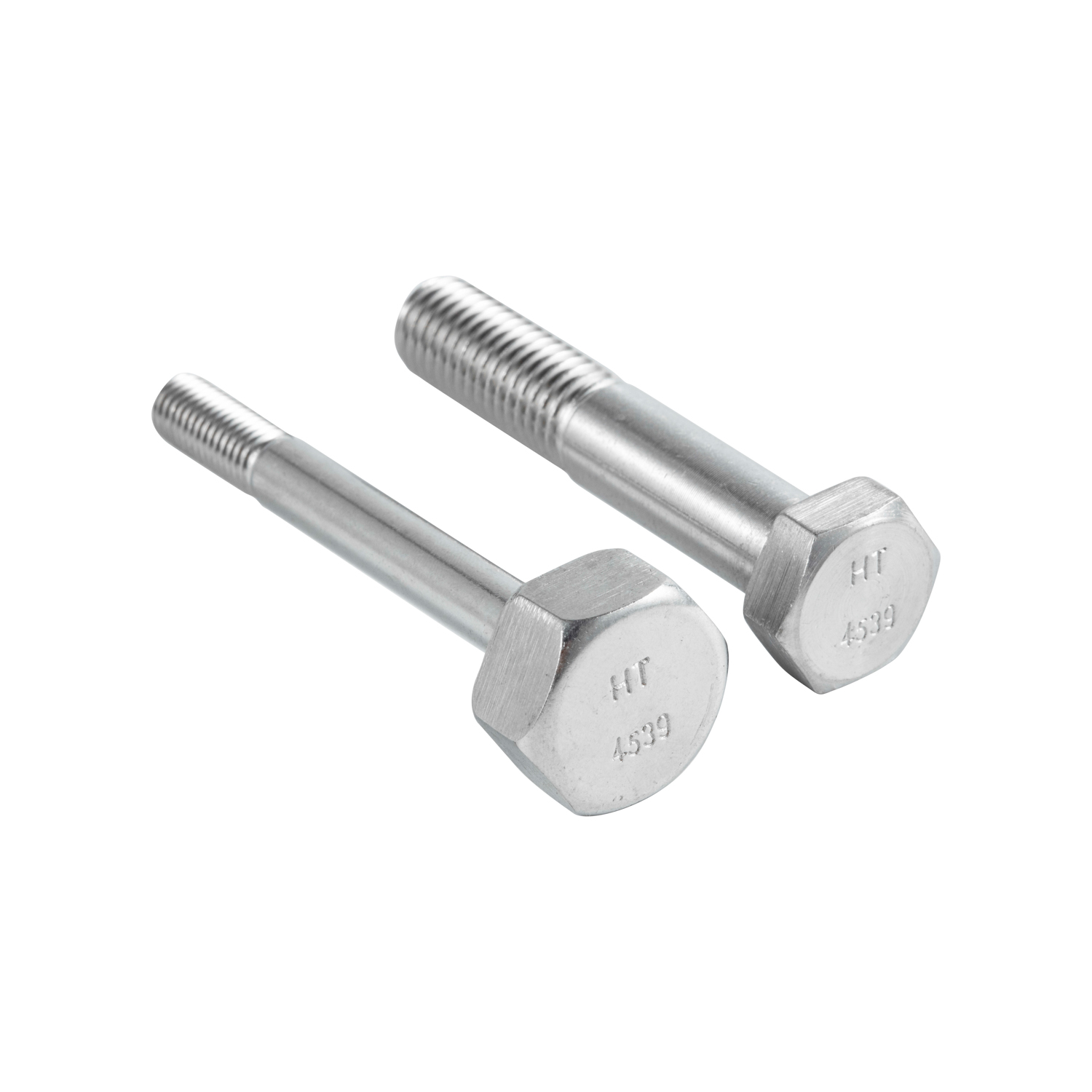

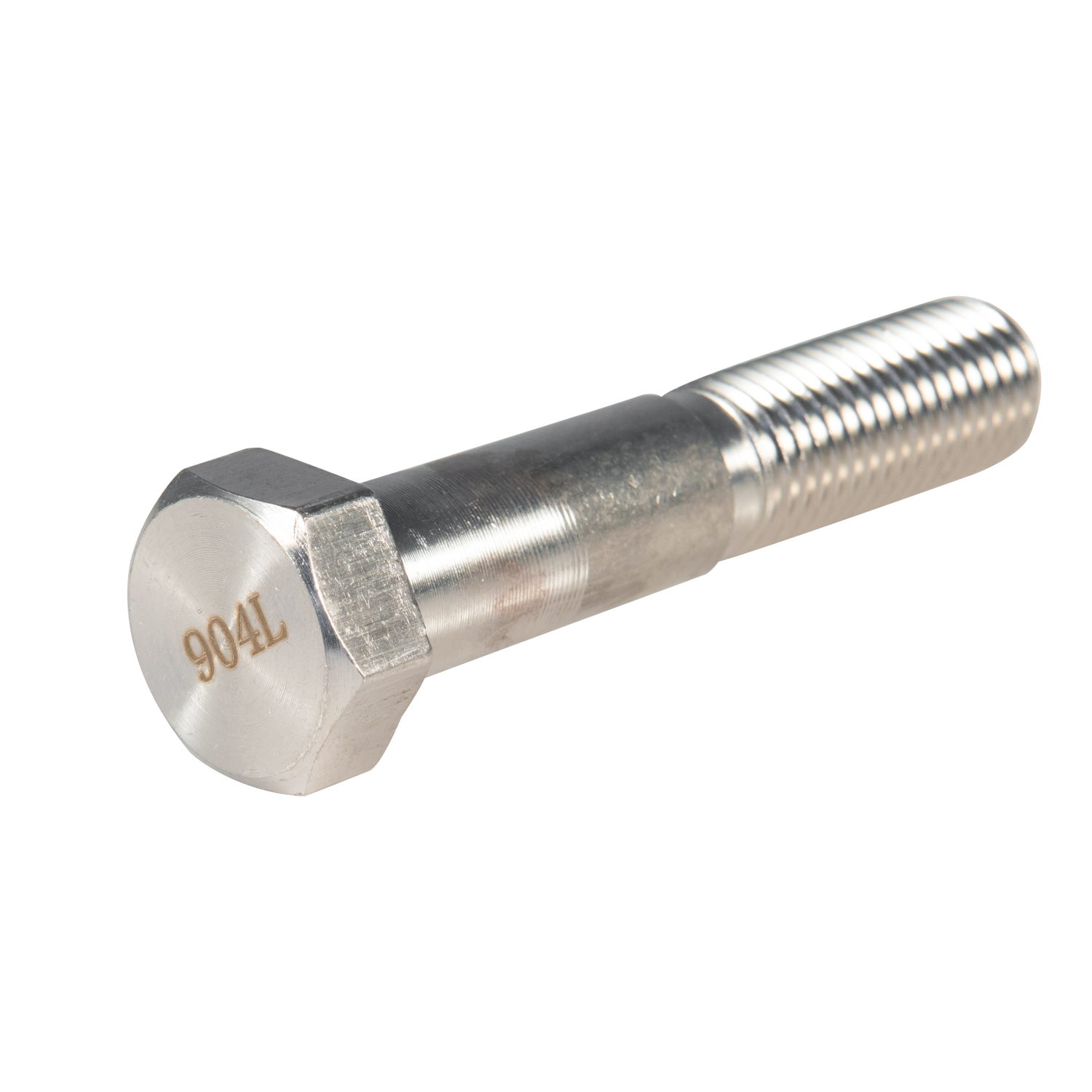

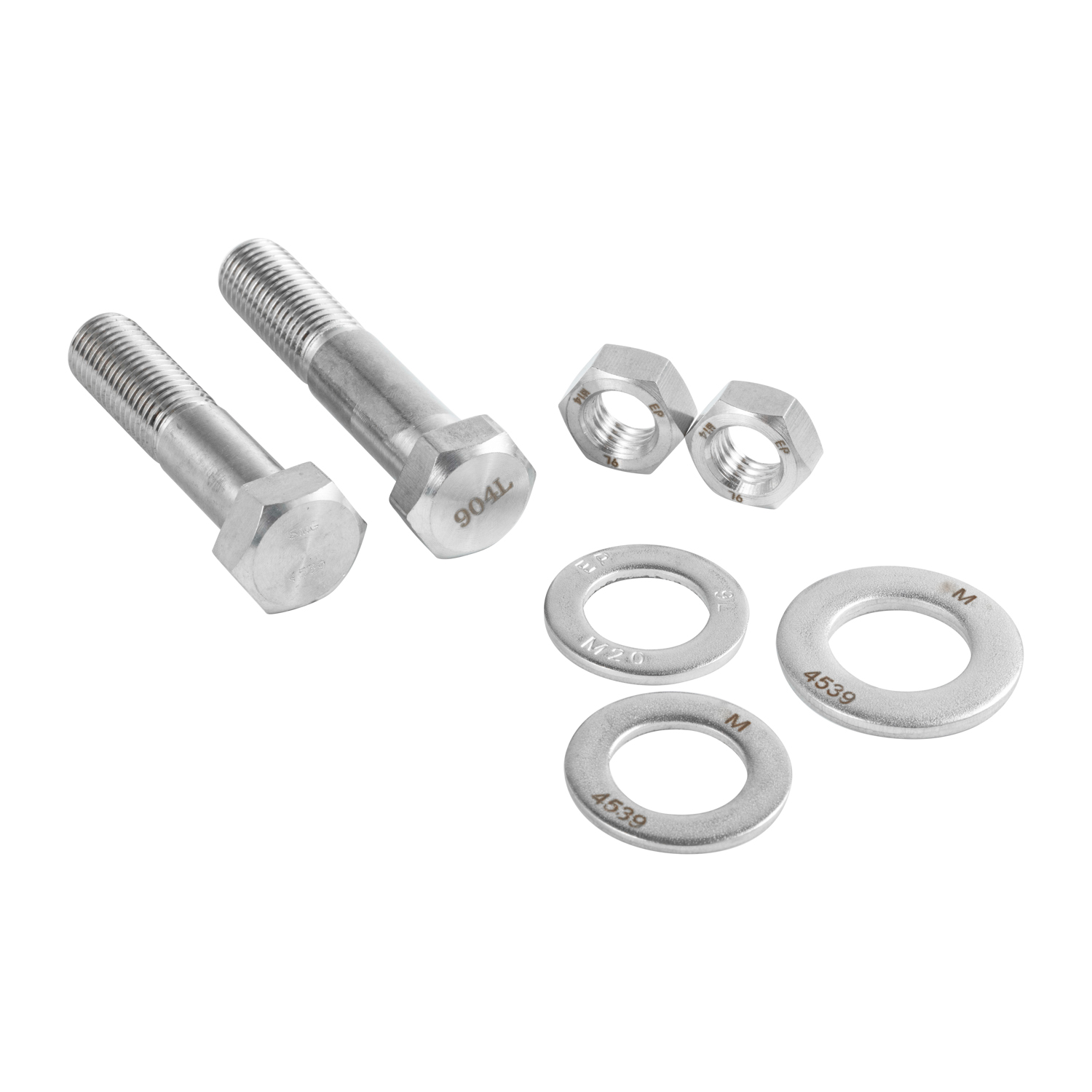

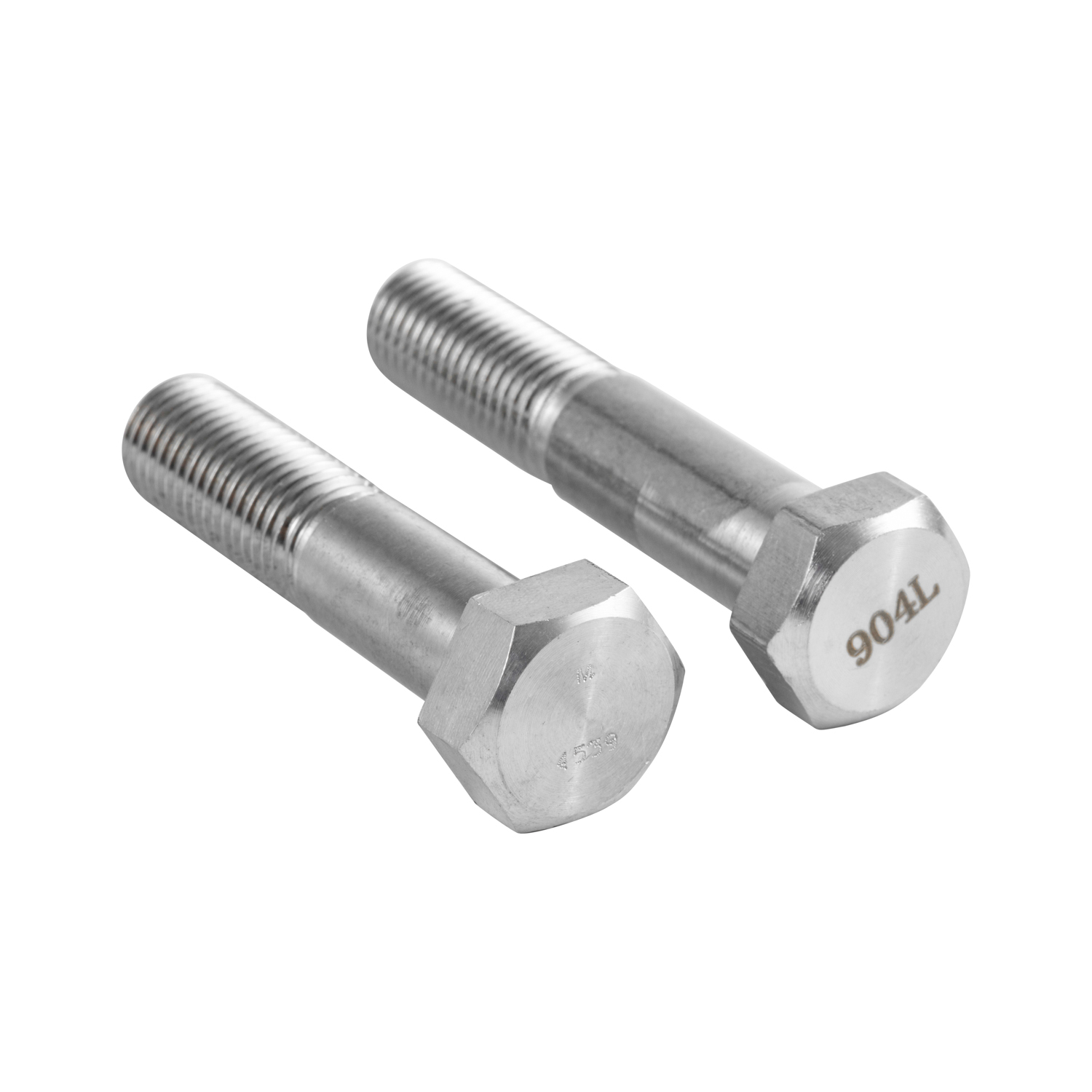

904L BOLT
Standard
DIN931/DIN933,ISO4014/ISO4017,ASME B 18.2.1,
JIS B1180
Size Range
M5-M64 or non-standard as requested
Finish
Bright&Clean
Marking
HT&FST or customization
Material
904L,1.4539,UNS N08904
Grade
Grade 80
Certificates
EN10204-3.1B
Non-standards
OEM is available, according to drawing or sample
Samples
Samples available
Package
Bulk in box and then in cartons, then on pallets,
or according to customers' requirement.
Payment
T/T,Western Union
Similar grades of corrosion resistant alloy 904L
UNS AISI/ASME ID W.Nr NO8904 904L F904L 1.4539
Chemical composition of corrosion resistant alloy 904L
Alloy % Ni Cd Mo Cu Fe C Mn Cu S 904L Min. 24 19 4 1 Bal Max. 26 21 5 2 0.02 2 0.03 0.015
Physical properties of corrosion resistant alloy 904L
Density 8.0 g/cm³ Melting point 1300~1390 ºC
Minimum value of mechanical properties of corrosion resistant alloy 904L at room temperature
Tensile strength Rm N/mm²
Yield strength
RP0.2 N/mm²
Elongation
A 5 %
490 215 35
