DIN933
HT&FST
2.4800DIN933M12x100
| Size: | |
|---|---|
| Availability: | |
| Quantity: | |

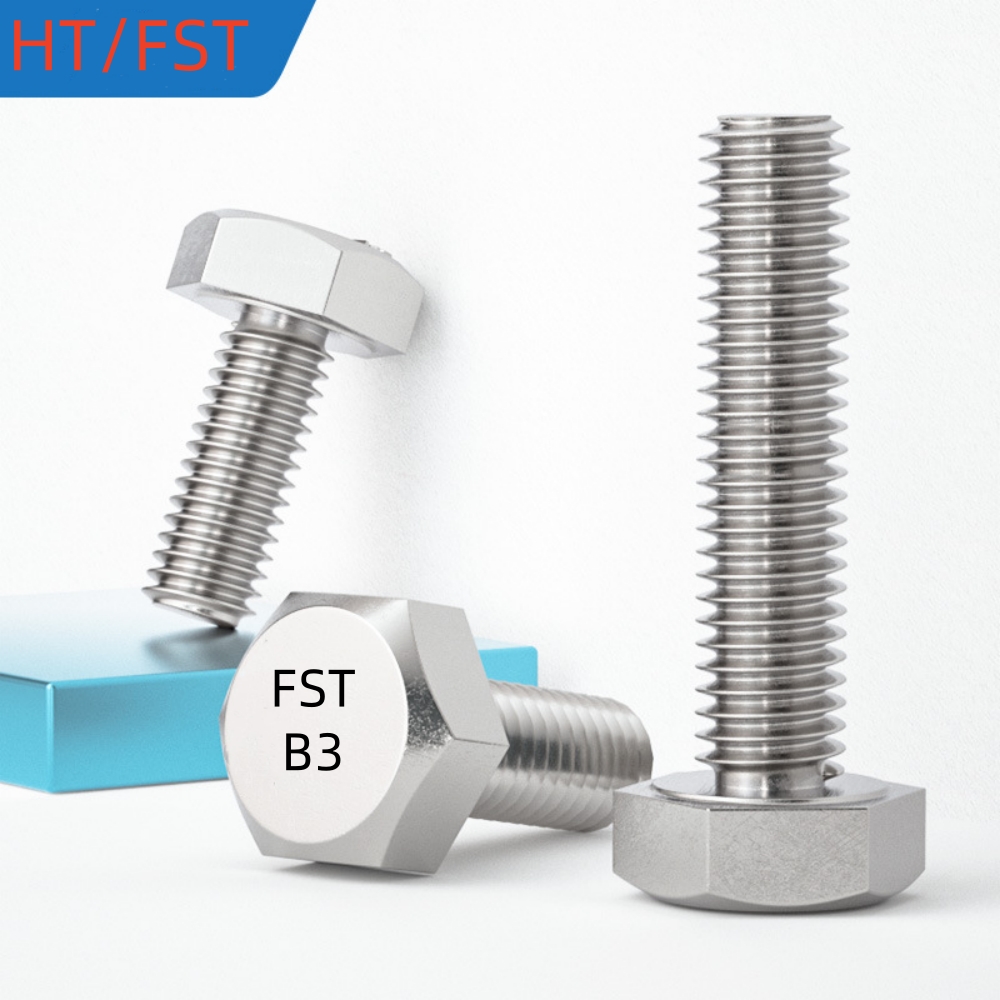

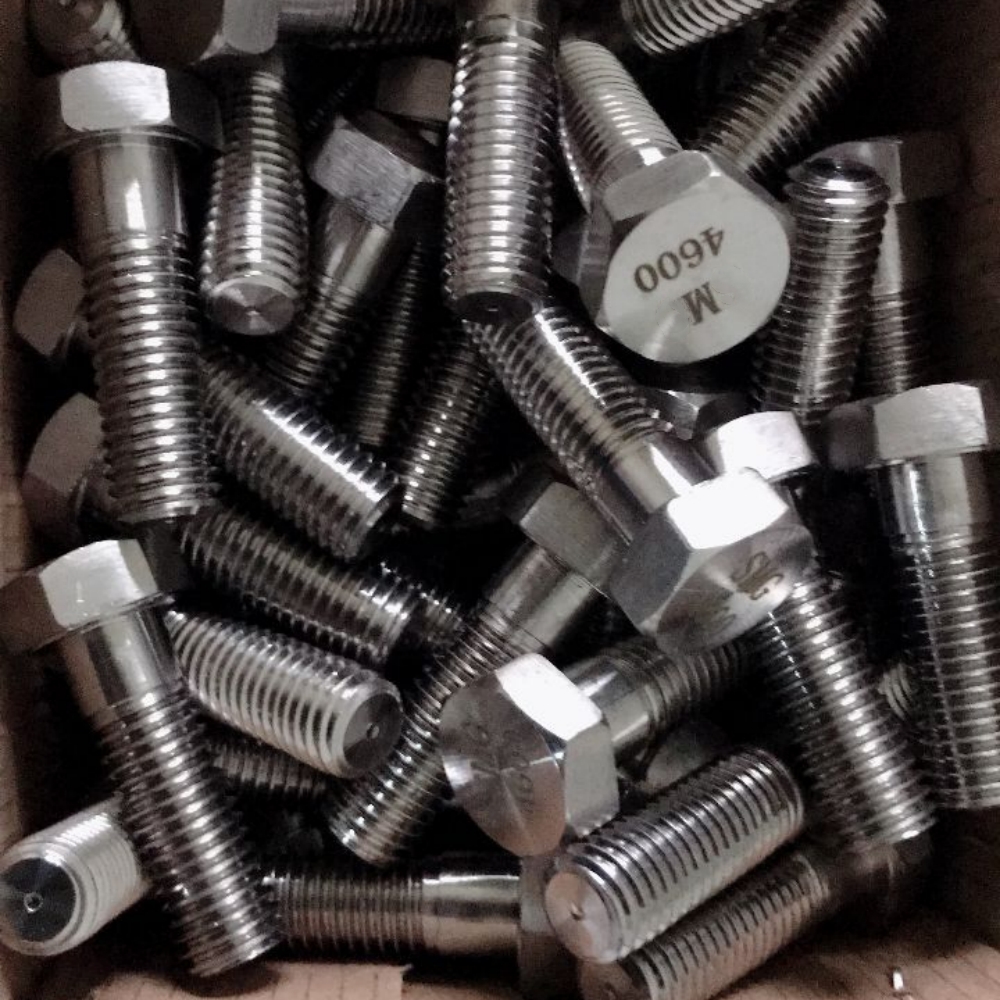

B3 Hex Bolt
Name | Hastelloy 2.4600 Hex bolt |
Standard | DIN931/DIN933,ISO4014/ISO4017,ASME B 18.2.1, JIS B1180 |
Size Range | M5-M64 or non-standard as requested |
Finish | Bright&Clean |
Marking | HT&FST or customization |
Material | Hastelloy B3/N10675/2.4600 |
Grade | Grade 80 |
Certificates | EN10204-3.1B |
Non-standards | OEM is available, according to drawing or samples |
Samples | Samples available |
Package | Bulk in box and then in cartons, then on pallets, or according to customers' requirement. |
| Payment | T/T,Western Union |
Similar brand
UNS | Trademark | W.Nr |
| N10675 | HastelloyB3 | 2.4600 |
Chemical composition of Hastelloy B-3 Spectrum in Hastelloy alloy
| Alloy | % | Ni | Cr | Mo | Fe | W | Co | C | Mn | Si | V | P | S | Cu | AL | Ti | Nb | Ta | Tr | NiMo |
| Hastelloy B-3 | Min. | ≥ | 1 | 27 | 1 | 94 | ||||||||||||||
| Min. | 65 | 3 | 32 | 3 | 3 | 3 | 0.01 | 3 | 0.1 | 0.2 | 0.03 | 0.1 | 0.2 | 0.5 | 0.2 | 0.2 | 0.02 | 0.1 | 98 |
Physical Properties of Hastelloy B-3
Density | 9.24g/cm3 |
| Melting point | 1370-1418 ºC |
Minimum mechanical properties of Hastelloy B-3 alloy at room temperature
| Tensile strength Rm N/mm2 | Residential strength RP0.2 N/mm2 | Elongation rate A5% |
| 760 | 350 | 40 |
B3 Hex Bolt
Name | Hastelloy 2.4600 Hex bolt |
Standard | DIN931/DIN933,ISO4014/ISO4017,ASME B 18.2.1, JIS B1180 |
Size Range | M5-M64 or non-standard as requested |
Finish | Bright&Clean |
Marking | HT&FST or customization |
Material | Hastelloy B3/N10675/2.4600 |
Grade | Grade 80 |
Certificates | EN10204-3.1B |
Non-standards | OEM is available, according to drawing or samples |
Samples | Samples available |
Package | Bulk in box and then in cartons, then on pallets, or according to customers' requirement. |
| Payment | T/T,Western Union |
Similar brand
UNS | Trademark | W.Nr |
| N10675 | HastelloyB3 | 2.4600 |
Chemical composition of Hastelloy B-3 Spectrum in Hastelloy alloy
| Alloy | % | Ni | Cr | Mo | Fe | W | Co | C | Mn | Si | V | P | S | Cu | AL | Ti | Nb | Ta | Tr | NiMo |
| Hastelloy B-3 | Min. | ≥ | 1 | 27 | 1 | 94 | ||||||||||||||
| Min. | 65 | 3 | 32 | 3 | 3 | 3 | 0.01 | 3 | 0.1 | 0.2 | 0.03 | 0.1 | 0.2 | 0.5 | 0.2 | 0.2 | 0.02 | 0.1 | 98 |
Physical Properties of Hastelloy B-3
Density | 9.24g/cm3 |
| Melting point | 1370-1418 ºC |
Minimum mechanical properties of Hastelloy B-3 alloy at room temperature
| Tensile strength Rm N/mm2 | Residential strength RP0.2 N/mm2 | Elongation rate A5% |
| 760 | 350 | 40 |
