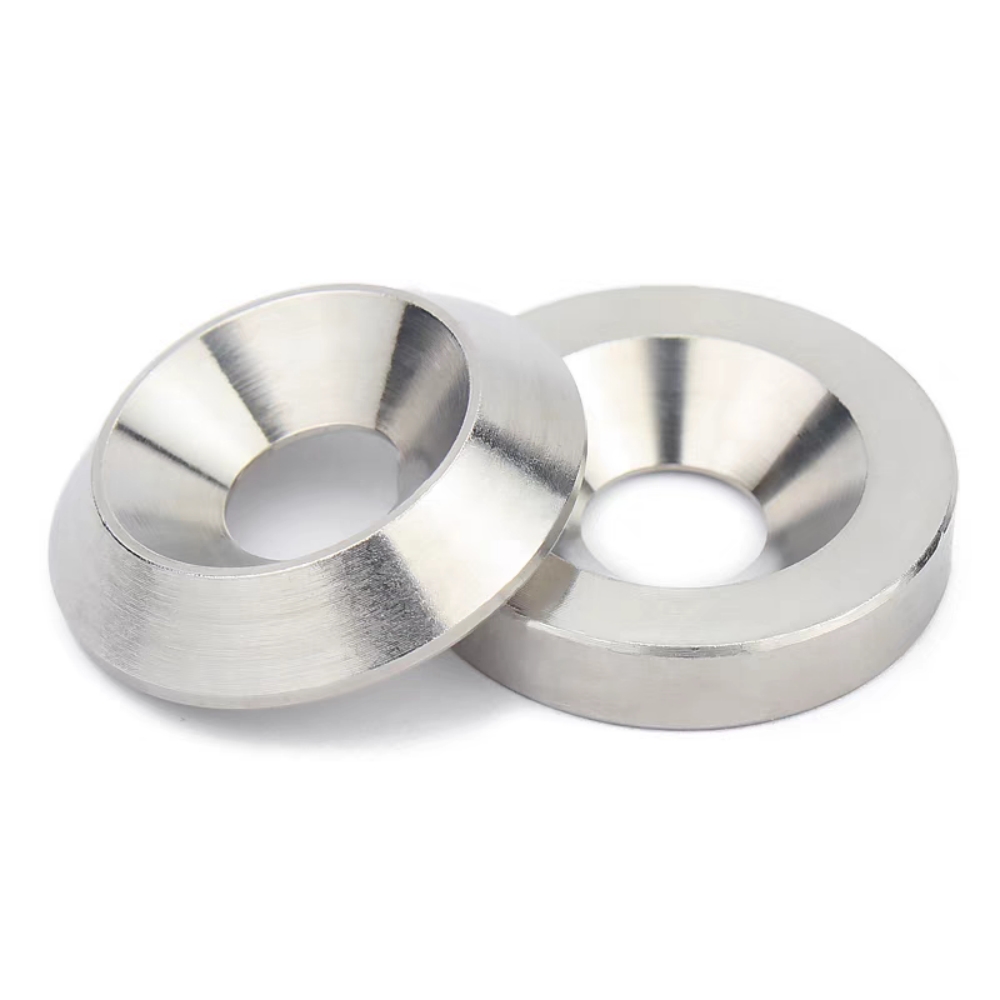

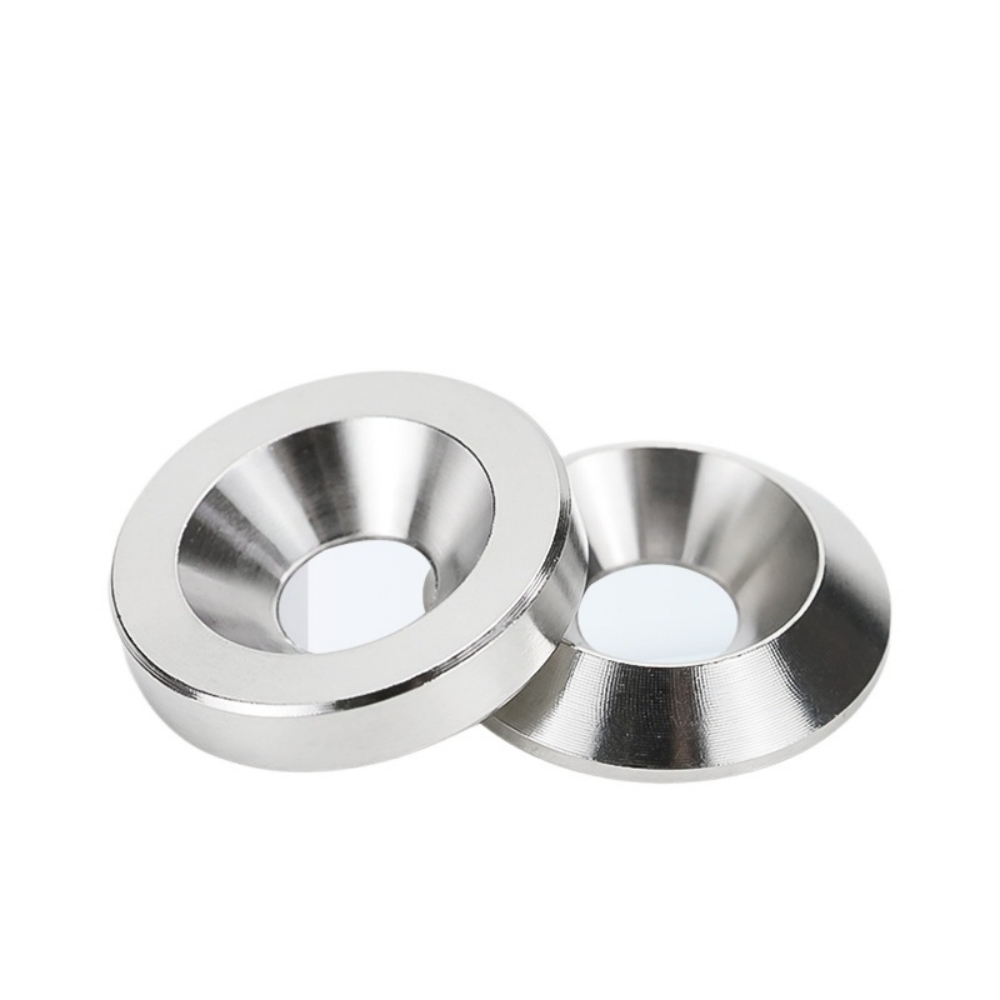

SS304 316 CONCAVE CONVEX FISH ETY WASHER
Name | CONCAVE CONVEX FISH ETY WASHER |
Standard | As drawing |
Size Range | M3-M10 |
Finish | Bright&Clean |
Marking | No Marking |
Material | SS304,A2,1.4301; SS316,A4,1.4401 |
Grade | Grade A2 & A4 |
Certificates | EN10204-3.1B |
Non-standards | OEM is available, according to drawing or samples |
Samples | Samples available |
Package | Bulk in box and then in cartons, then on pallets,or according to customers' requirement. |
Payment | T/T,Western Union， if order more than USD50,000 L/C is accepted |

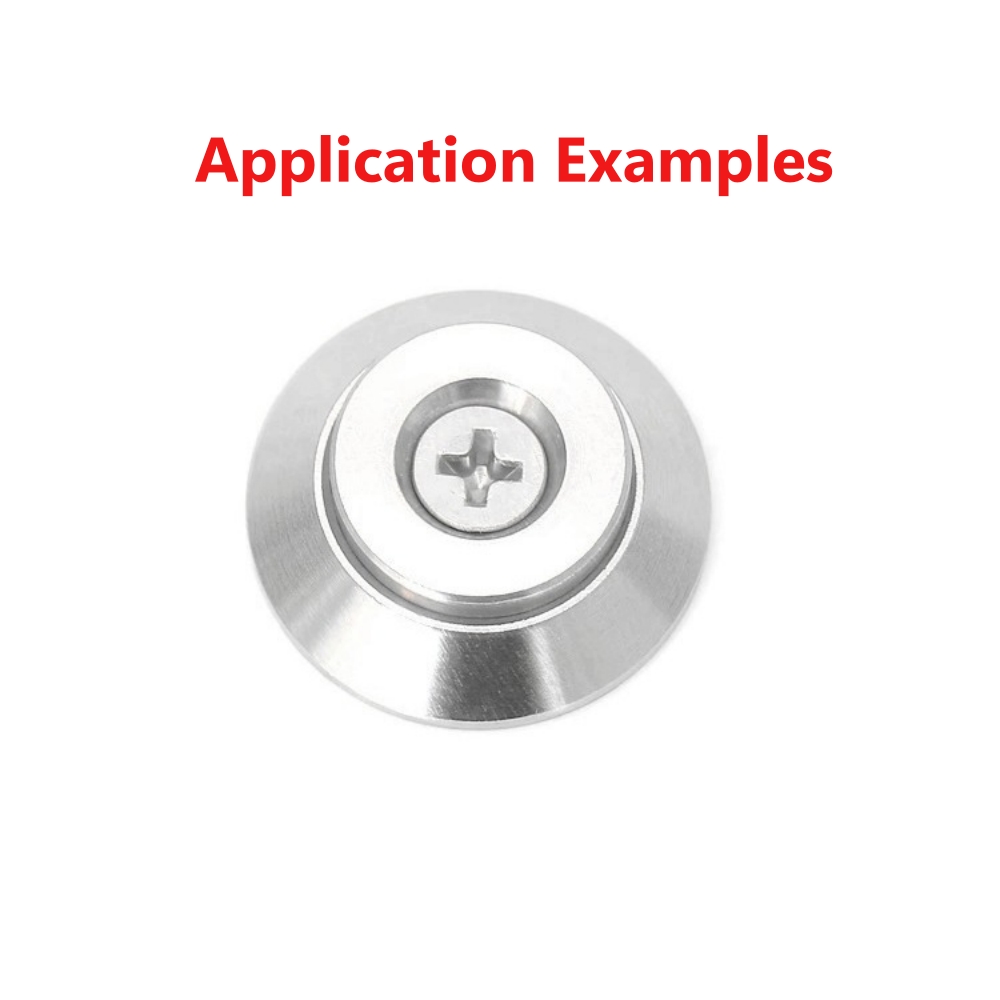

Where to use?

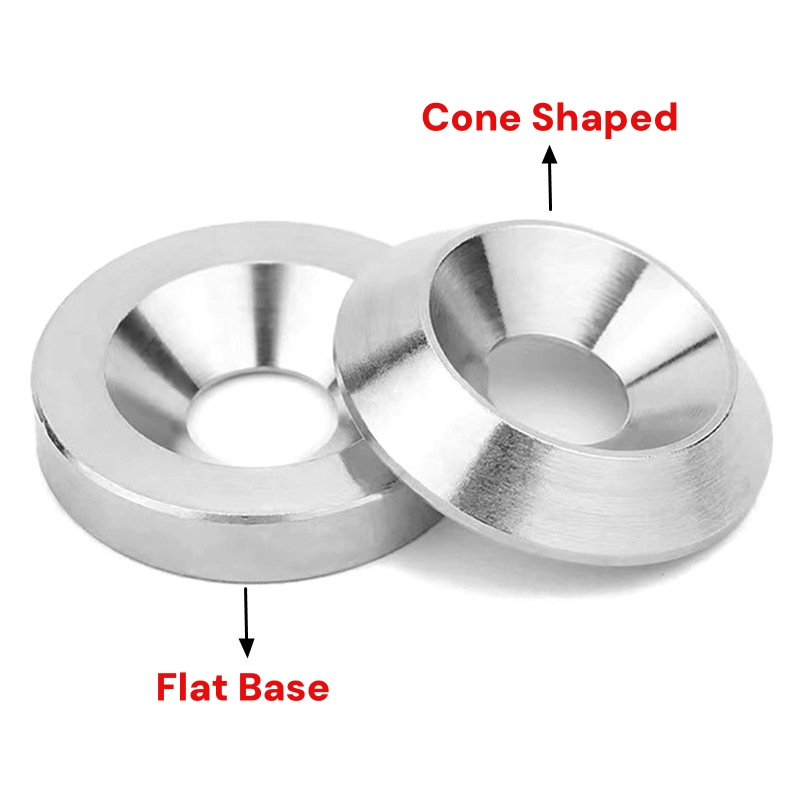

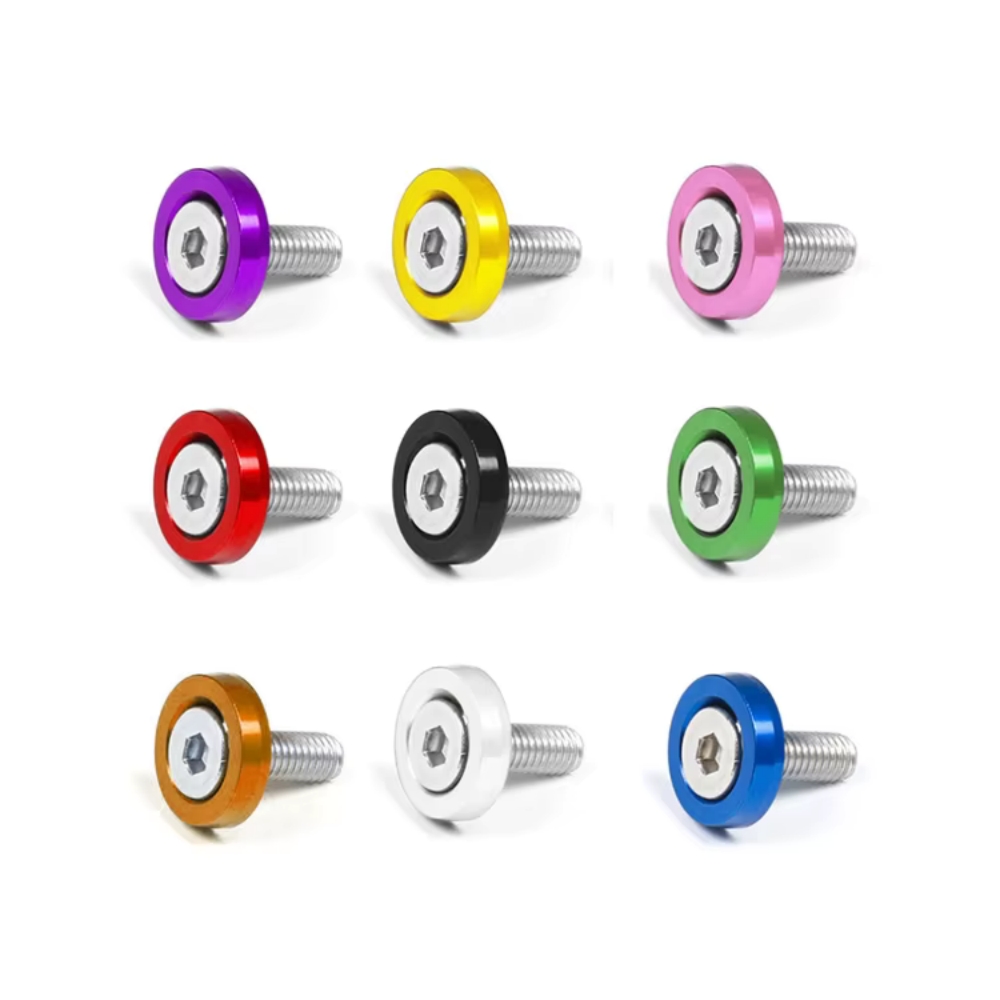

Concave Convex Washers are a type of spring washers that have a concave outer edge and a convex inner edge.Whice are used with countersunk head screws together. These washers are primarily used to provide compression preloading to various types of fasteners and joints. They are designed to have a greater range of motion in shear than traditional flat washers, allowing them to absorb more shear stress while remaining seated in the fastener and joint. This can help to improve the performance and fatigue life of fasteners and joints in dynamic loading applications.

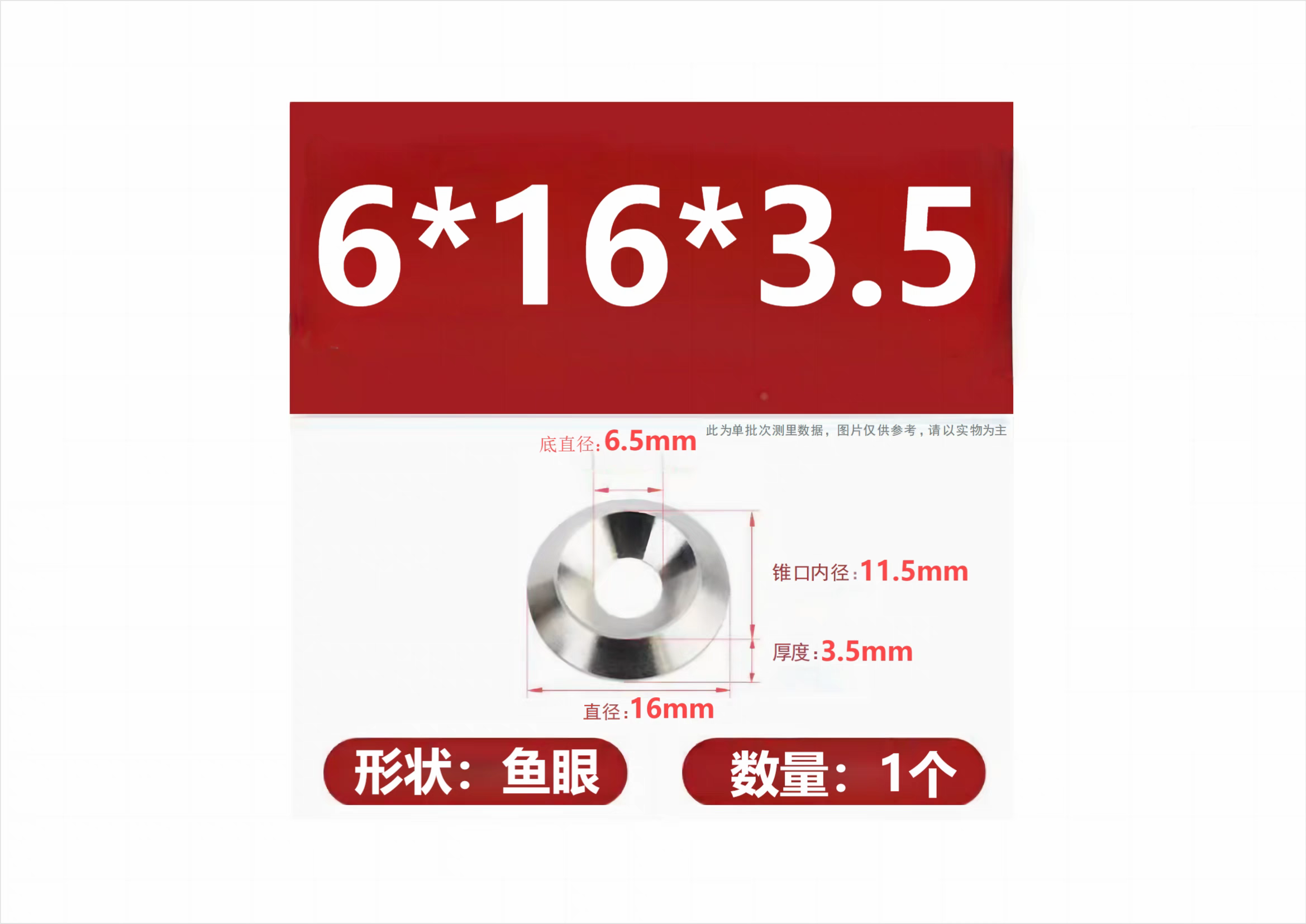

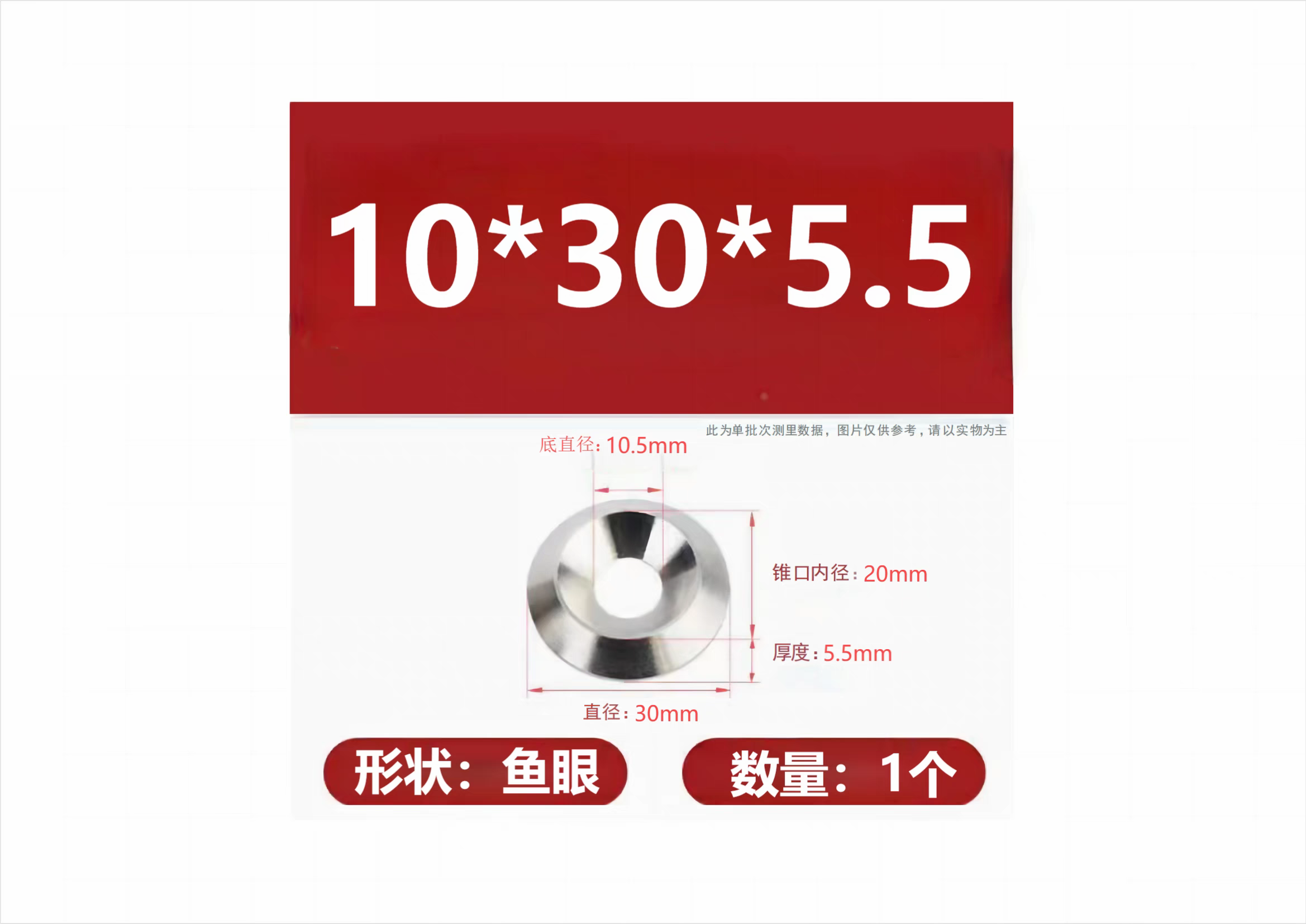

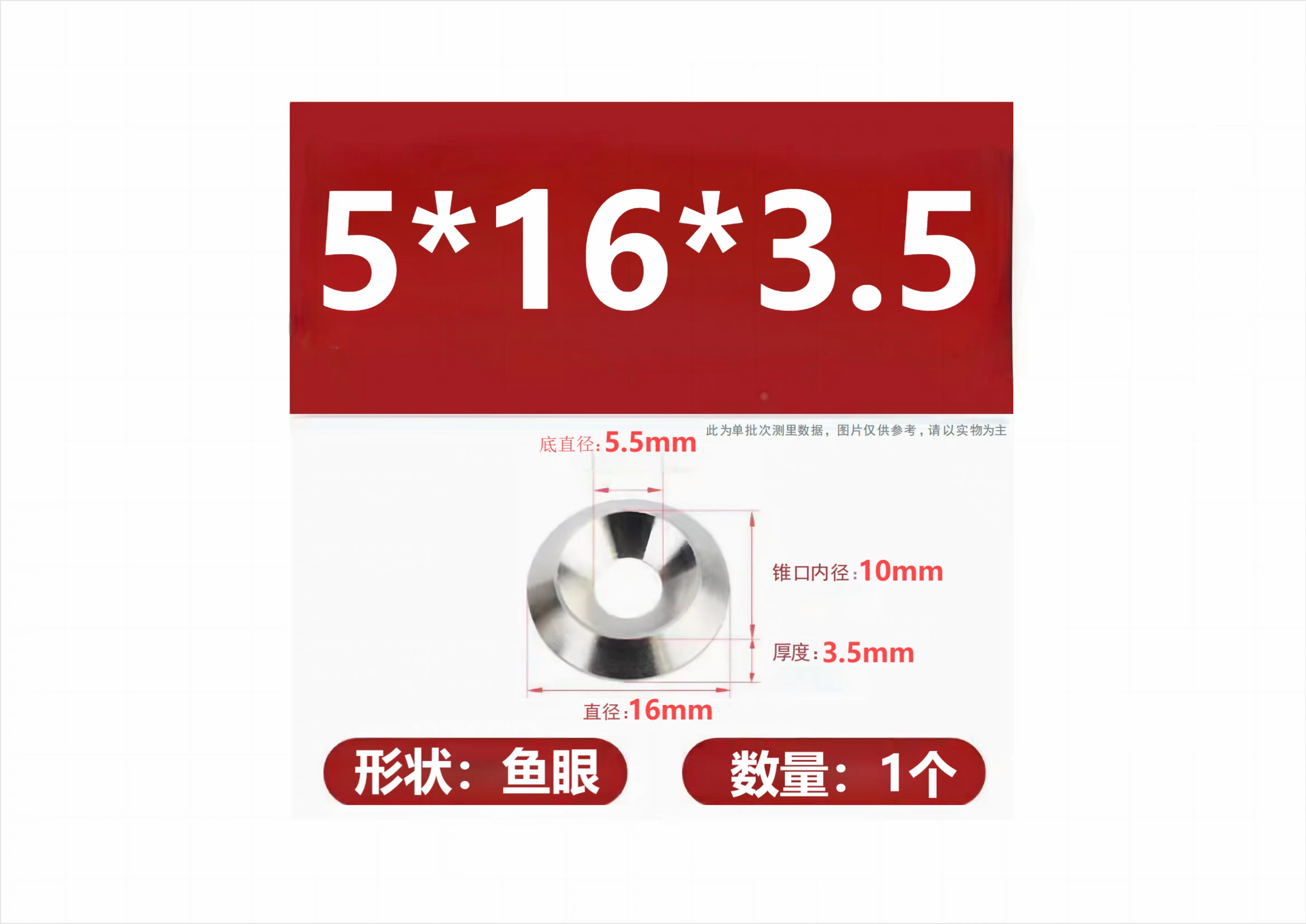

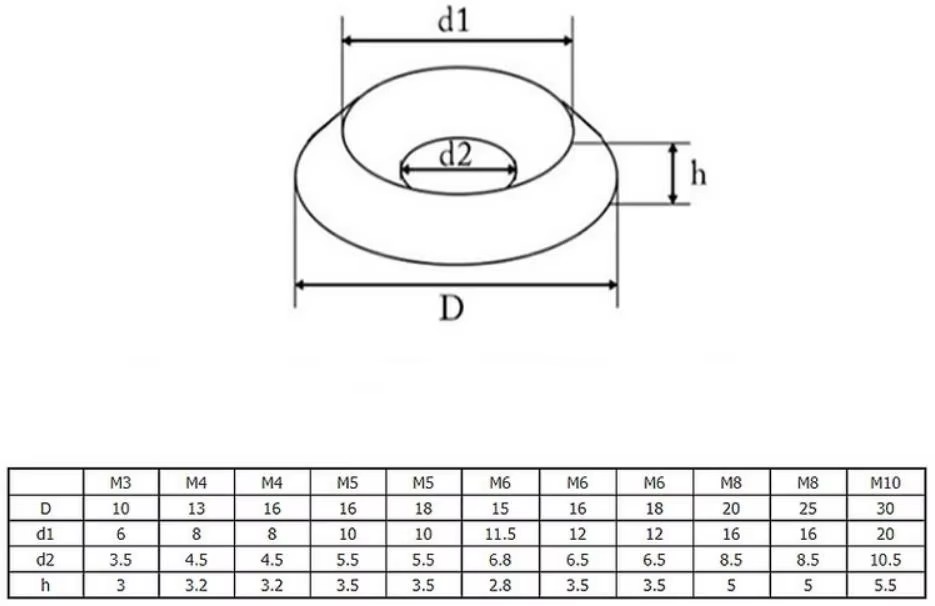

Popular size as drawing

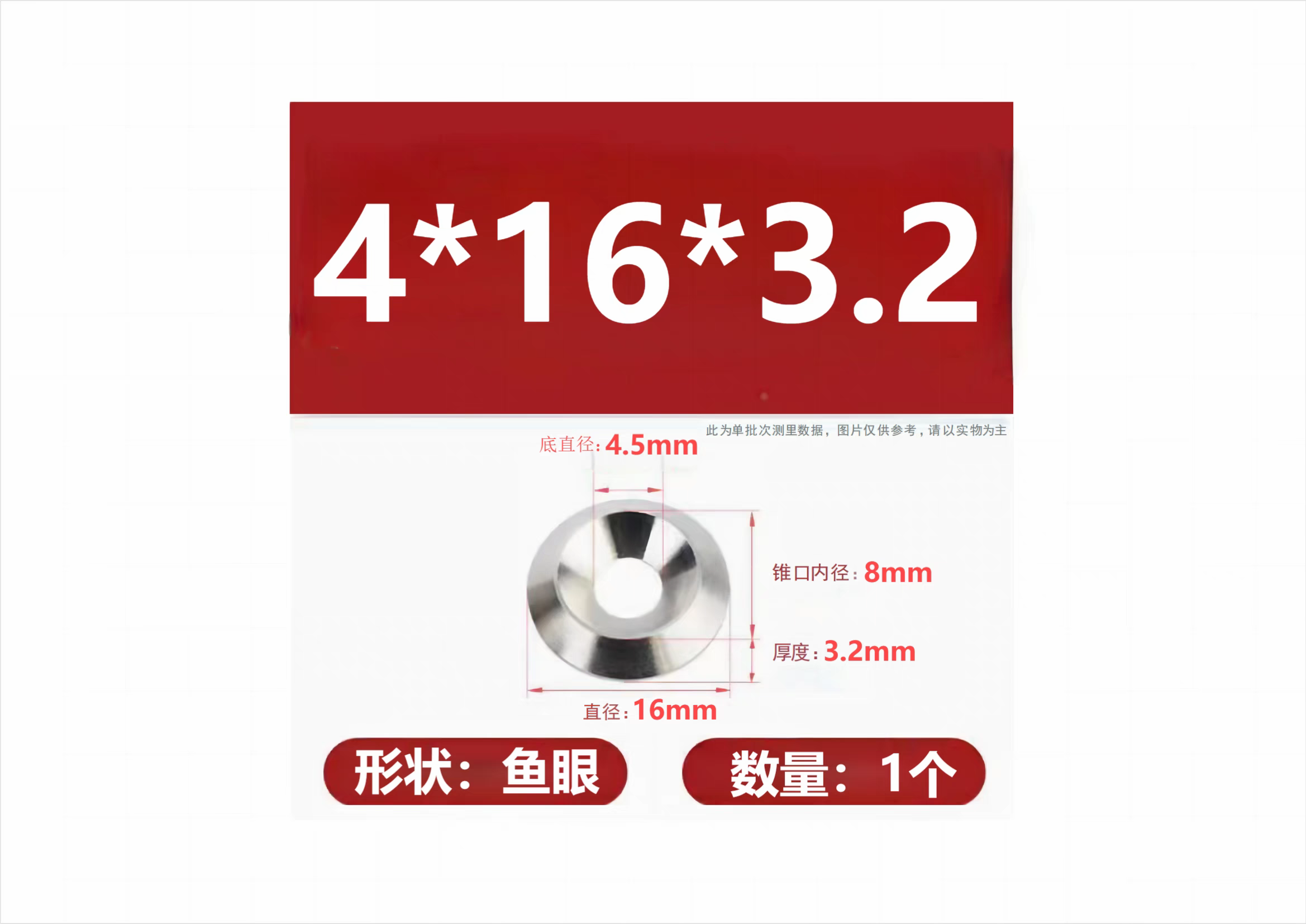

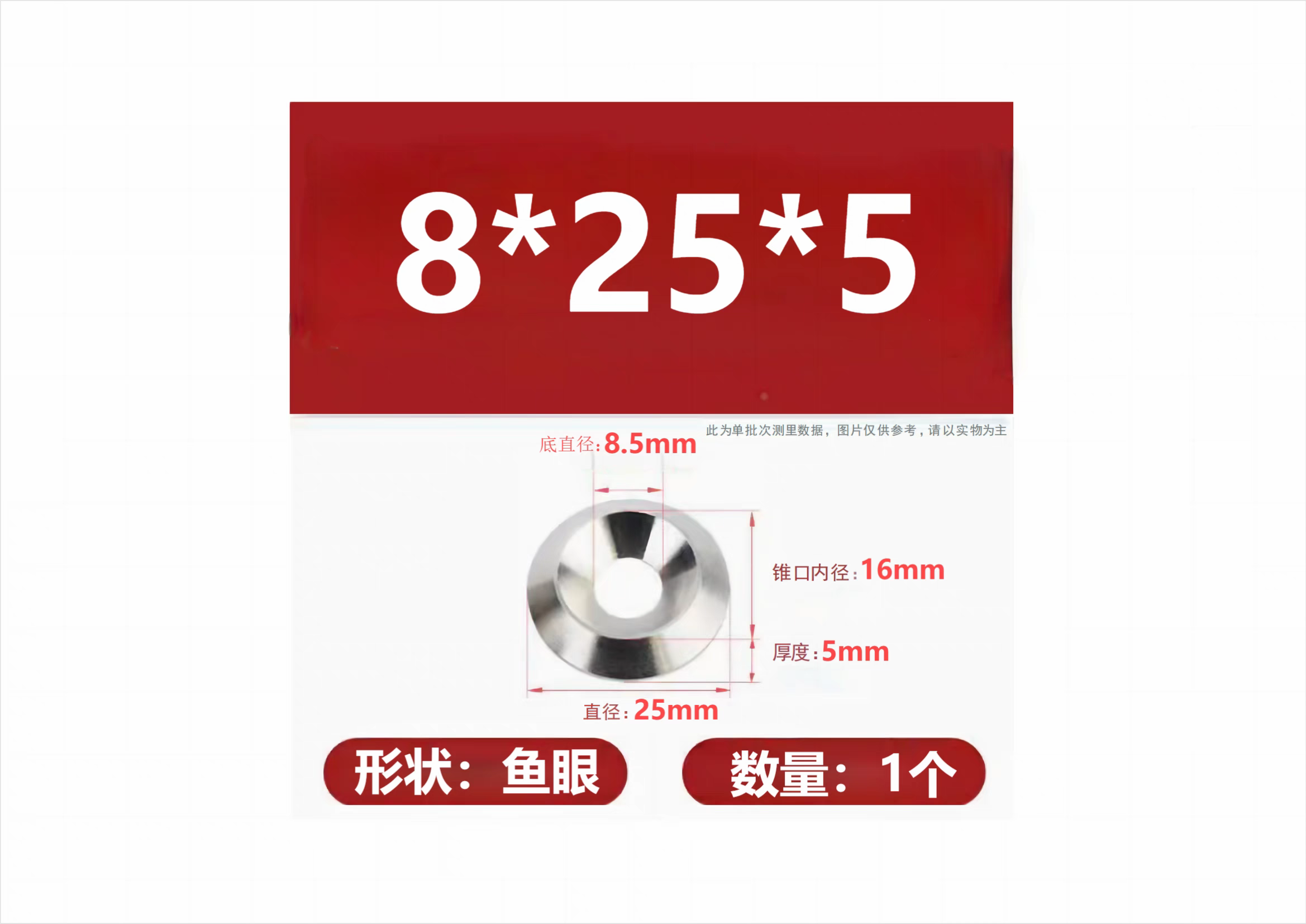

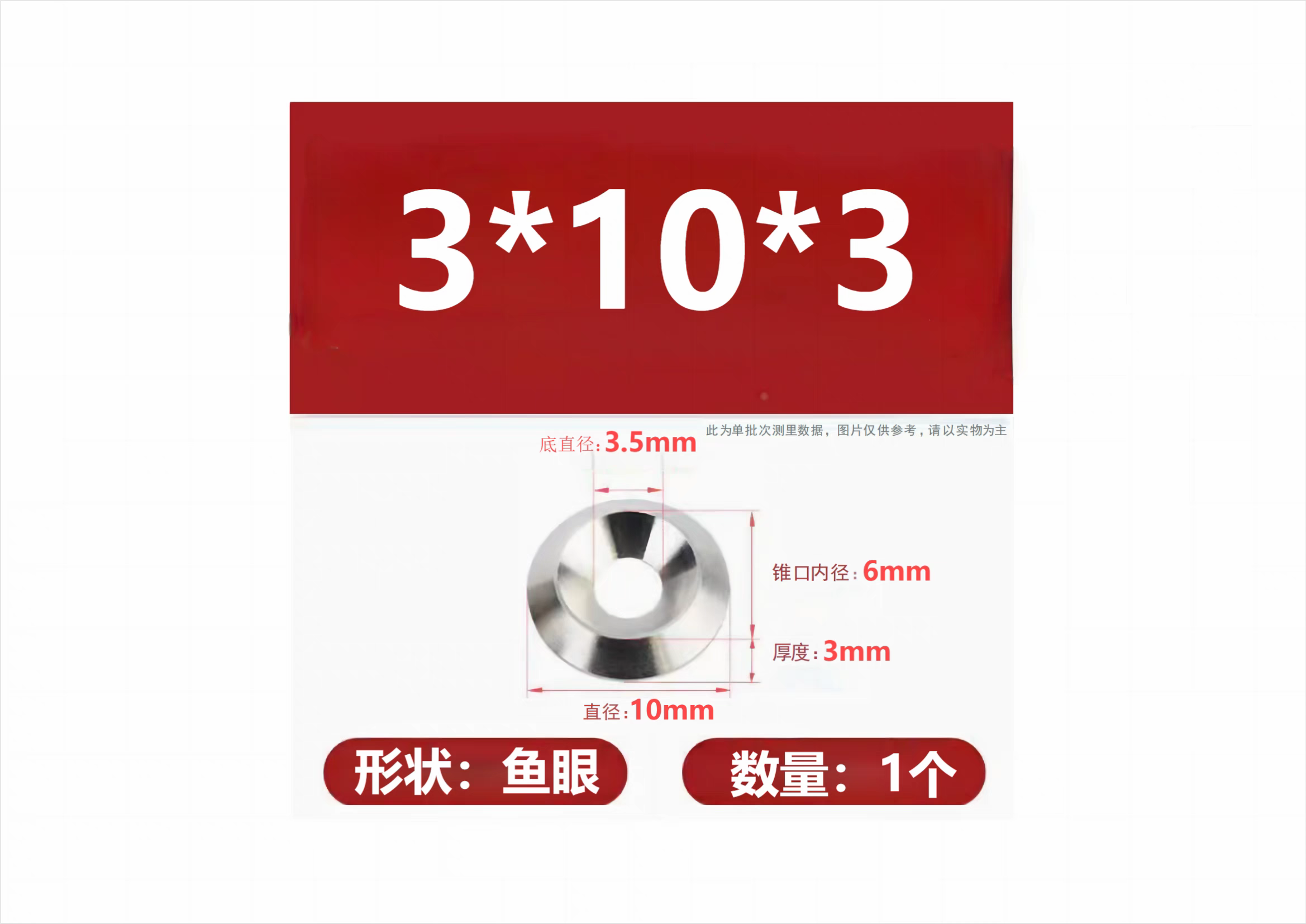

What size we have in stock
Similar Grades of 304 Stainless Steel
| Grade | UNS | W.Nr |
| 304 | S30400 | 1.4301 |
Chemical Composition of 304 Stainless Steel
| Alloy | % | Ni | Cr | C | Mn | Si | S | N | P |
| 304 | Min. | 8 | 18 | ||||||
| Max. | 10.5 | 20 | 0.08 | 2.0 | 1.0 | 0.03 | 0.10 | 0.035 |
Physical properties of 304 stainless steel
| Density | 7.93 g/cm³ |
| Melting point | 1398-1454°C |
Minimum mechanical properties of 304 stainless steel alloy at room temperature
| Tensile strength Rm N/mm² | Yield strength RP0.2 N/mm² | Elongation rate A5% | Brinell hardness HB |
| 520 | 205 | 40 | ≤187 |
Similar Grades of 316 Stainless Steel
| Grade | UNS | W.Nr |
| 316 | S31600 | 1.4401 |
Chemical composition of 316 stainless steel round rod
| Alloy | % | Ni | Cr | C | Mn | Si | S | N | P |
| 316 | Min. | 10.0 | 16.0 | 2.0 | |||||
| Max. | 14.0 | 18.0 | 0.08 | 2.0 | 1.0 | 0.03 | 3.0 | 0.045 |
Minimum mechanical properties of 316 stainless steel round bar alloy at room temperature
| Density | 7.98g/cm³ |
| Melting point | 1345-1450°C |
Minimum mechanical properties of 316 stainless steel round bar alloy at room temperature
| Tensile strength Rm N/mm² | Yield strength RP0.2 N/mm² | Elongation rate A5% | Brinell hardness HB |
| 520 | 205 | 40 | ≤187 |
