What the cylinder tie rod nut is?
- Cylinder refers to the cylindrical component where the piston moves.
- Tie rod means the rod used to connect and fix different parts of the cylinder.
- Nut is the threaded fastener that secures the tie rod in place.
Together, "cylinder tie rod nut" specifically refers to the nut that fastens the tie rod in a cylinder assembly, ensuring structural stability and connection of components.
Application of Cylinder Tie Rod Round Nut
It is mainly used to fasten the cylinder tie rod, fixing and connecting each component of the cylinder (such as cylinder head, cylinder block, etc.) into a whole to ensure the stability of each component's position and maintain the structural strength and sealing performance of the cylinder.

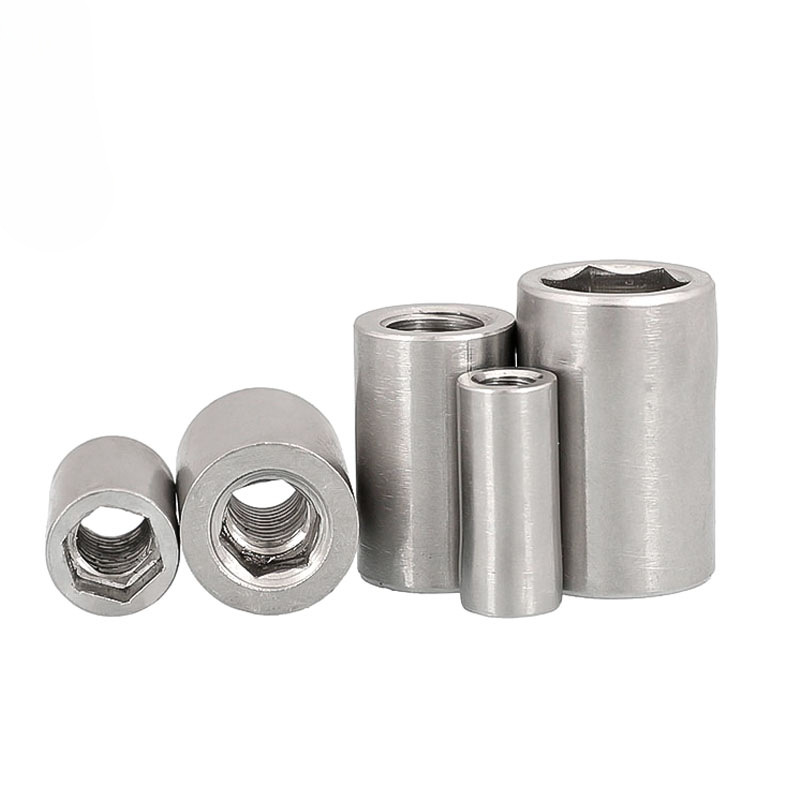

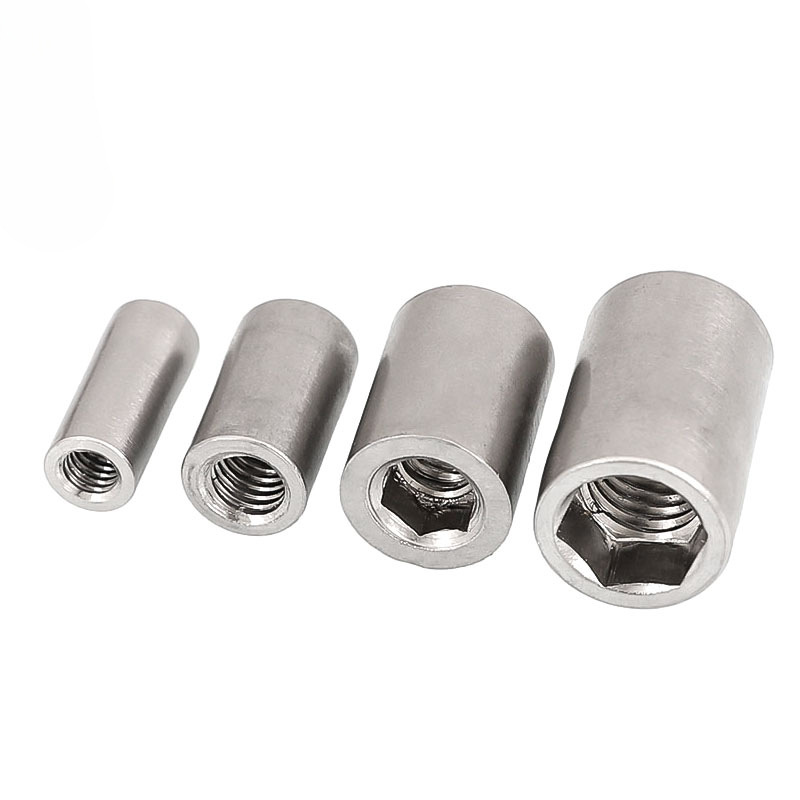

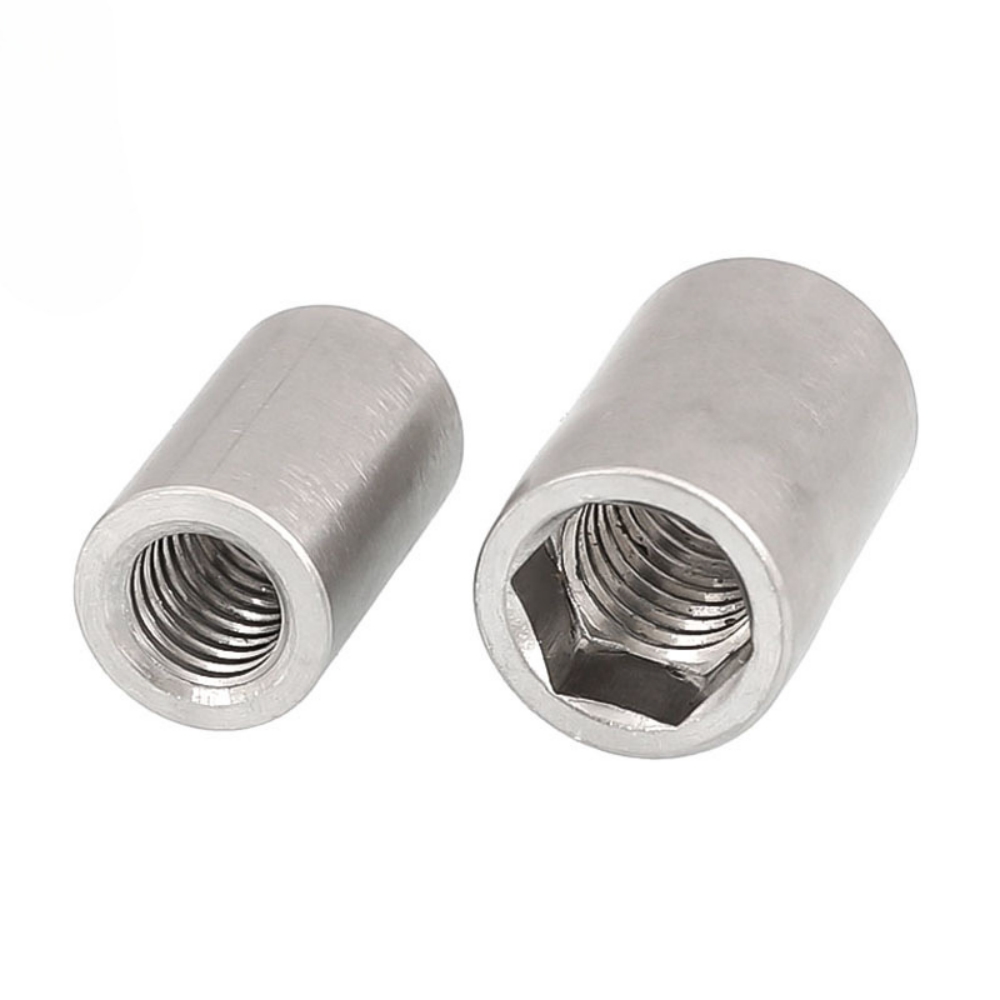

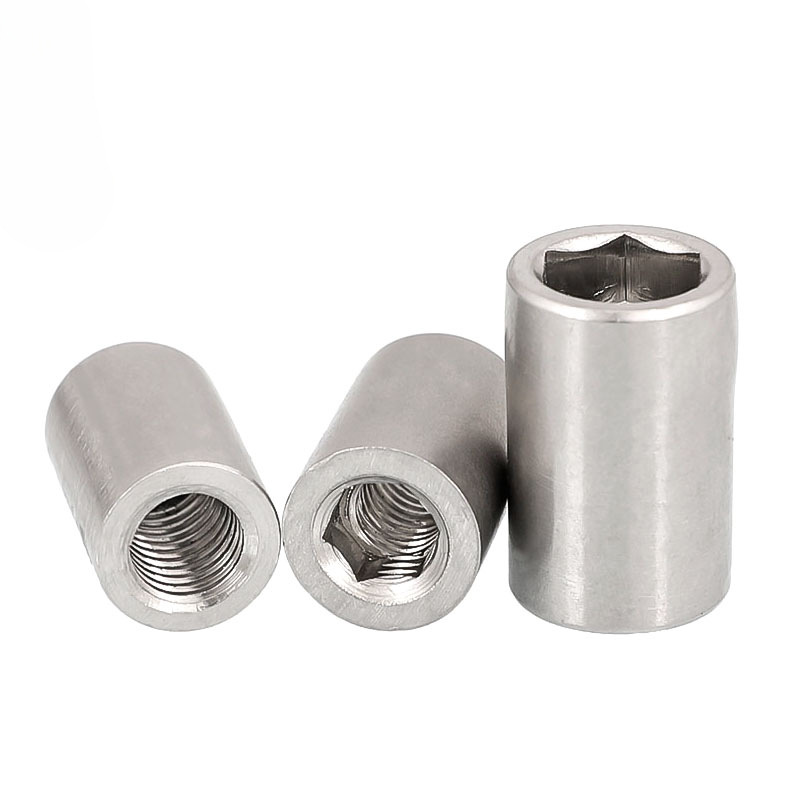

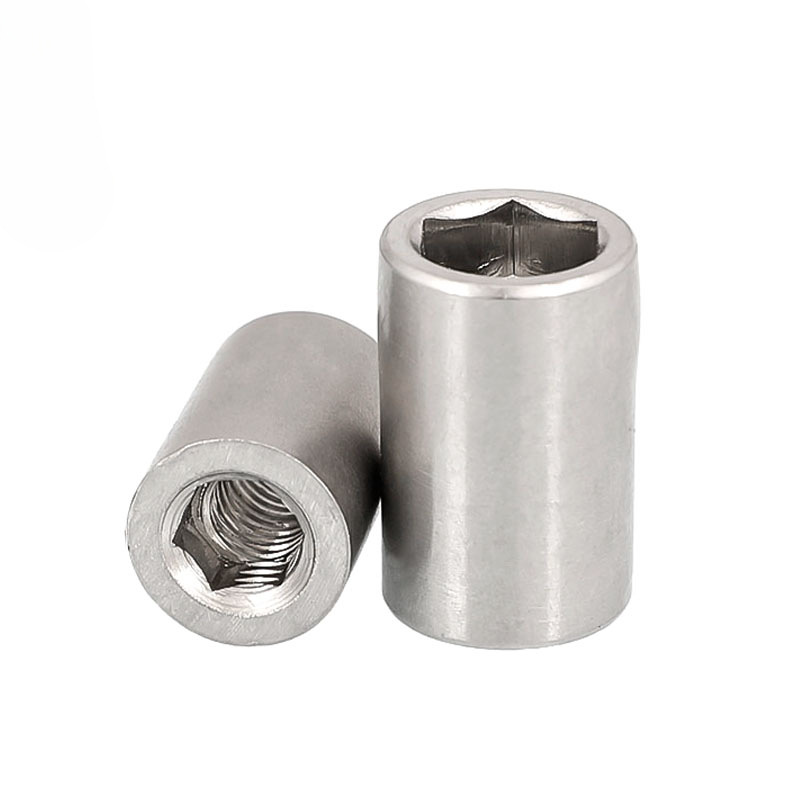

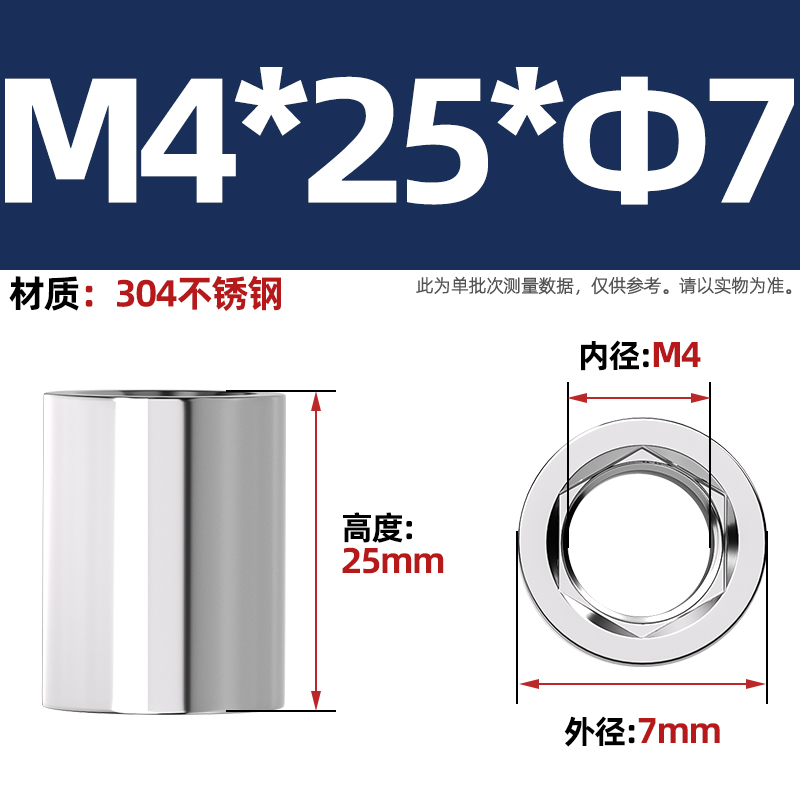

SS304 316 Cylinder Tie Rod Round Nut
Name | Stainless steel Cylinder Tie Rod Round Nut |
Standard | as drawing |

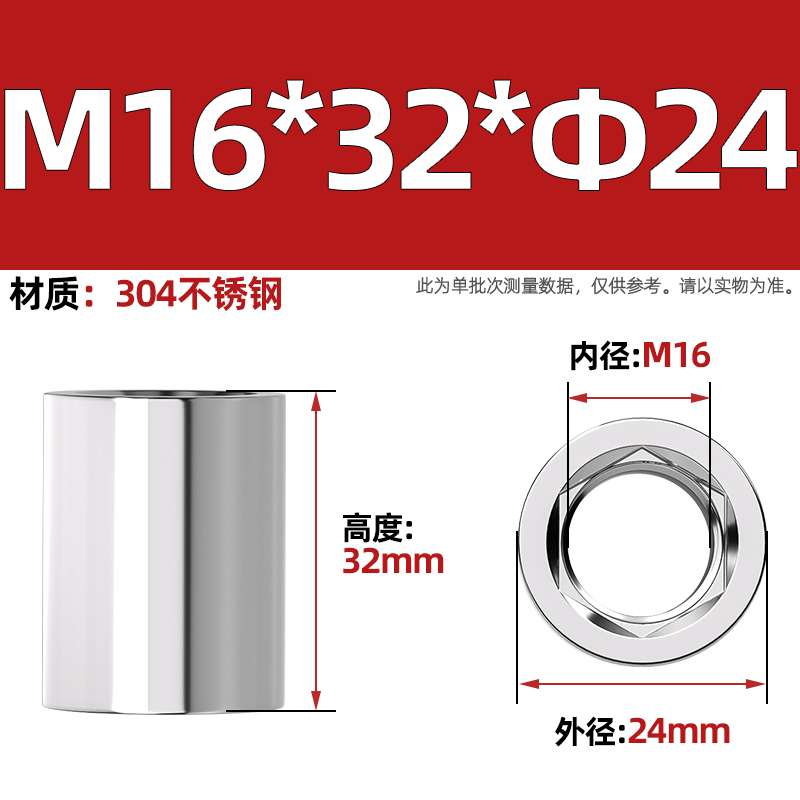

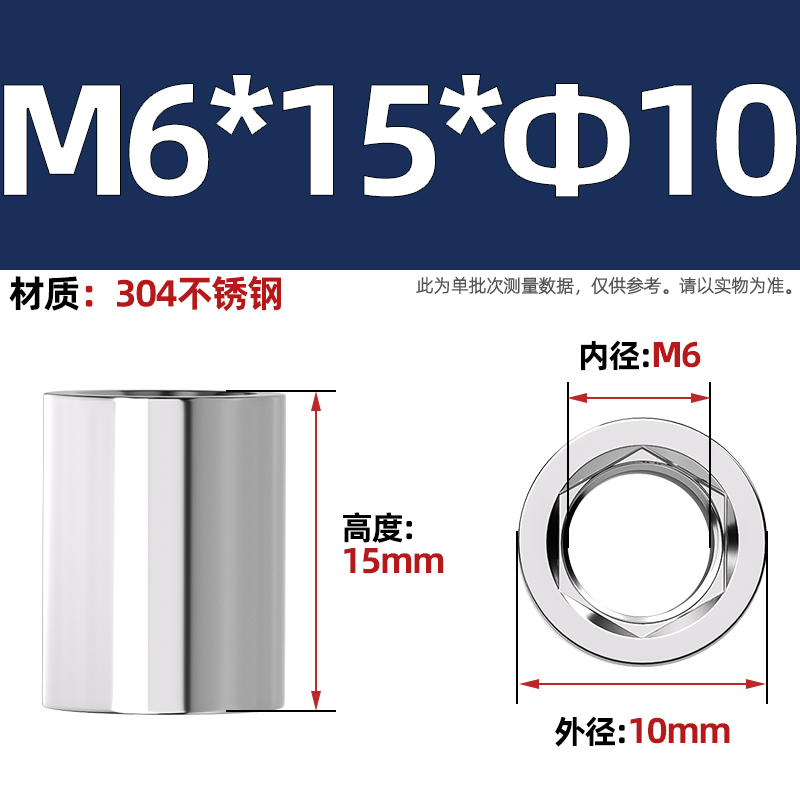

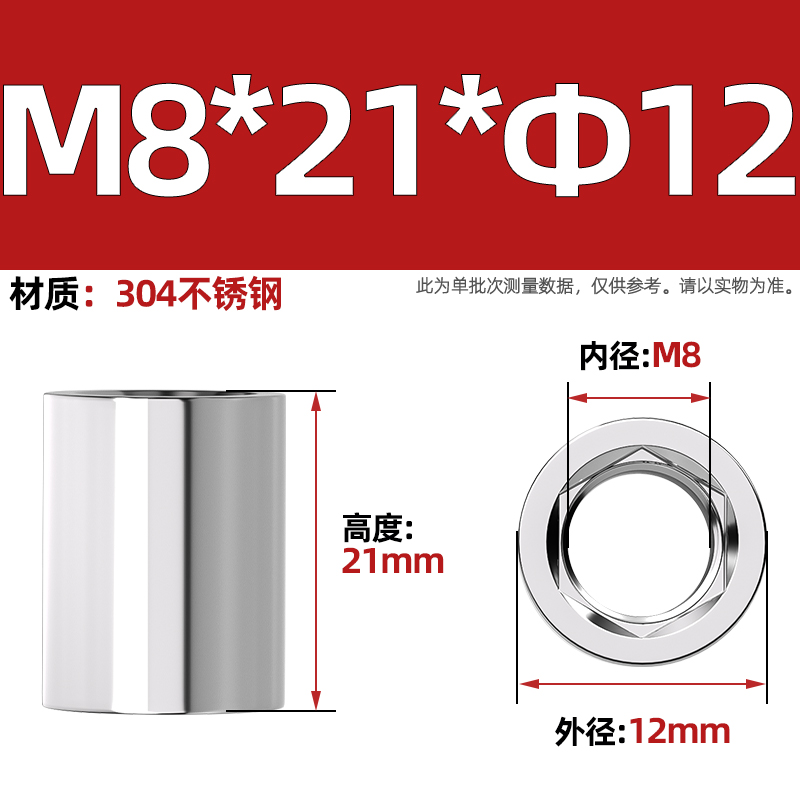

Size Range | M6-M16 or non-standard as requested |
Finish | Bright&Clean |
Marking | HT&FST or customization |
Material | SS304,A2,1.4301; SS316,A4,1.4401,Dulex2205,Super duplex2507,1.4529,Hastelloy,Monel |
Grade | Grade A2-70 & A4-70 |
Certificates | EN10204-3.1B |
Non-standards | OEM is available, according to drawing or samples |
Samples | Samples available |
Package | Bulk in box and then in cartons, then on pallets,or according to customers' requirement. |
Payment | T/T,Western Union， if order more than USD50,000 L/C is accepted |
Similar Grades of 304 Stainless Steel
| Grade | UNS | W.Nr |
| 304 | S30400 | 1.4301 |
Chemical Composition of 304 Stainless Steel
| Alloy | % | Ni | Cr | C | Mn | Si | S | N | P |
| 304 | Min. | 8 | 18 | ||||||
| Max. | 10.5 | 20 | 0.08 | 2.0 | 1.0 | 0.03 | 0.10 | 0.035 |
Physical properties of 304 stainless steel
| Density | 7.93 g/cm³ |
| Melting point | 1398-1454°C |
Minimum mechanical properties of 304 stainless steel alloy at room temperature
| Tensile strength Rm N/mm² | Yield strength RP0.2 N/mm² | Elongation rate A5% | Brinell hardness HB |
| 520 | 205 | 40 | ≤187 |
Similar Grades of 316 Stainless Steel
| Grade | UNS | W.Nr |
| 316 | S31600 | 1.4401 |
Chemical composition of 316 stainless steel round rod
| Alloy | % | Ni | Cr | C | Mn | Si | S | N | P |
| 316 | Min. | 10.0 | 16.0 | 2.0 | |||||
| Max. | 14.0 | 18.0 | 0.08 | 2.0 | 1.0 | 0.03 | 3.0 | 0.045 |
Minimum mechanical properties of 316 stainless steel round bar alloy at room temperature
| Density | 7.98g/cm³ |
| Melting point | 1345-1450°C |
Minimum mechanical properties of 316 stainless steel round bar alloy at room temperature
| Tensile strength Rm N/mm² | Yield strength RP0.2 N/mm² | Elongation rate A5% | Brinell hardness HB |
| 520 | 205 | 40 | ≤187 |
