Name

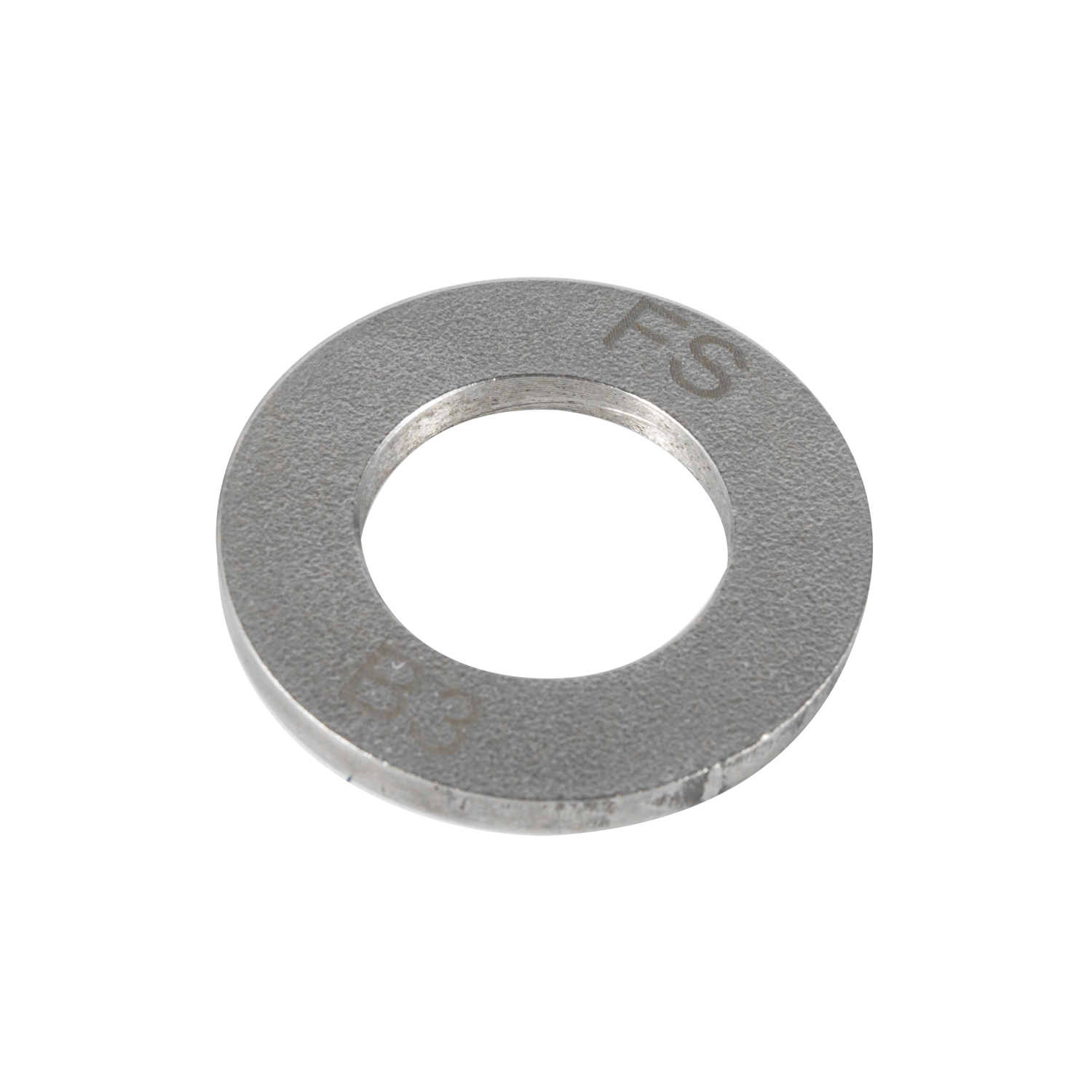

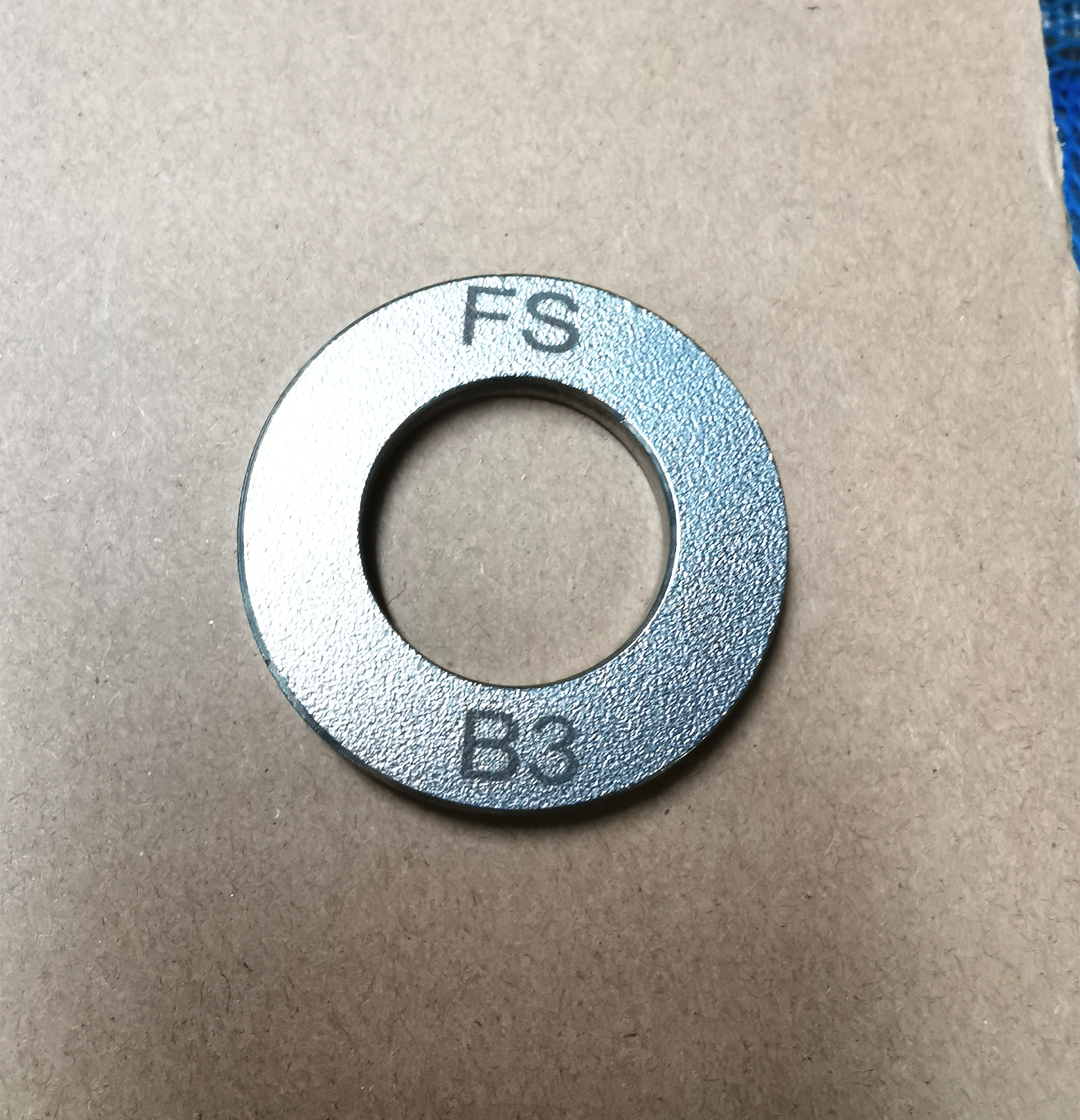

Hastelloy B3 Washer
Standard
DIN125A/DIN9021/DIN434,ISO7089/ISO7093,ASME B 18.22.1
Size Range
M6-M64 or non-standard as requested
Finish
Bright&Clean
Marking
HT&FST or customization
Material
Hastelloy B3/N10675/2.4600
Grade
Grade HV200
Certificates
EN10204-3.1B
Non-standards
OEM is available, according to drawing or samples
Samples
Samples available

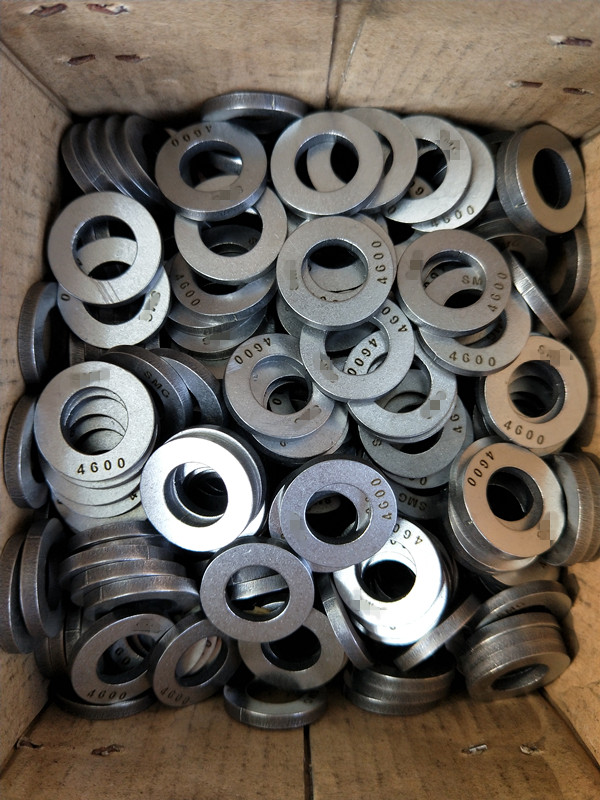

Package
Bulk in box and then in cartons, then on pallets,
or according to customers' requirement.
Payment
T/T,Western Union
Similar brand
UNS
Trademark
W.Nr
N10675 HastelloyB3 2.4600
Chemical composition of Hastelloy B-3 nut made of Hastelloy alloy
Alloy % Ni Cr Mo Fe W Co C Mn Si V P S Cu AL Ti Nb Ta Tr NiMo HastelloyB-3
Min. ≥ 1 27 1 Min. 65 3 32 3 3 3 0.01 3 0.1 0.1 0.03 0.1 0.2 0.5 0.2 0.2 0.02 0.1 98
Physical Properties of Hastelloy B-3 Nut Made of Hastelloy Alloy
Density
9.24g/cm3 Melting point 1370-1418 ºC
Minimum value of mechanical properties of Hastelloy B-3 nut at room temperature
Tensile strengthRm N/mm²
Yield strength
RP0.2 N/mm²
Elongation
A 5 %
760 350 40
