A coupling nut is an essential fastener in mechanical and structural assemblies, allowing two threaded rods or bolts to be securely joined. Proper installation of a coupling nut ensures structural stability, reduces wear on threaded connections, and supports the overall integrity of industrial equipment. Whether you are working with stainless steel, heavy duty, or DIN standard coupling nuts, following a systematic installation process is crucial to prevent misalignment, loosening, or damage to threaded components. This guide provides an in-depth approach to installing a coupling nut, focusing on precise techniques, tool selection, and safety considerations to achieve reliable performance in industrial use scenarios.

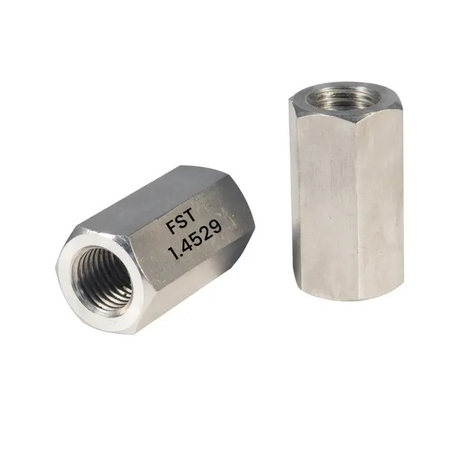

Coupling nuts are long hexagonal fasteners designed to join two threaded rods or bolts end-to-end. Unlike standard nuts, their extended length provides extra engagement for increased holding strength. They are available in multiple variants, including left hand thread, stainless steel, and heavy duty types, catering to various industrial requirements.
Applications of coupling nuts range from construction scaffolding, machinery assemblies, automotive frameworks, to electrical equipment installations. The choice of material, thread standard, and surface finish directly impacts performance. For example, DIN standard coupling nuts ensure compatibility with European threaded components, while stainless steel versions are preferred for corrosion resistance in outdoor or chemical environments. Understanding these factors ensures the correct fastener selection and reduces installation errors.
Choosing the appropriate coupling nut is critical for installation success. Consider the following criteria:
| Feature | Consideration | Recommendation |
|---|---|---|
| Thread Type | Standard vs. Left-hand thread | Match the rod or bolt thread to prevent cross-threading |
| Material | Carbon steel, stainless steel | Stainless steel for corrosion resistance; heavy duty for high-stress applications |
| Length | Short vs. extended | Longer nuts provide more engagement and stability |
| Application | Light duty, industrial | Use industrial use rated nuts for machinery or structural supports |
| Compliance | DIN, ISO standards | Ensure compatibility with existing components and assembly requirements |
Selecting the correct coupling nut ensures ease of installation, long-term durability, and compliance with engineering specifications.
Proper preparation prevents installation errors and damage to the coupling nut. Key steps include:
Thread Inspection: Check rods or bolts for cleanliness and straightness. Remove any burrs or debris that could cause cross-threading.
Tool Selection: Use high-quality wrenches or torque tools suitable for the size of the coupling nut. Adjustable or socket wrenches work well for hexagonal nuts.
Lubrication: Apply anti-seize compound or light grease on threads to reduce friction, particularly for stainless steel or heavy duty variants.
Workspace Preparation: Ensure adequate lighting, a stable surface, and protective gear. Avoid situations where the coupling nut could drop or get damaged.
Investing time in preparation streamlines the installation process, prevents damage to the coupling nut, and enhances alignment accuracy.
Installing a coupling nut requires precision and adherence to the correct sequence:
Align Threads: Start by hand-threading the first rod or bolt into one end of the coupling nut. Ensure it rotates smoothly without resistance.
Engage Fully: Turn the rod until it reaches approximately half the length of the nut’s internal thread.
Insert Second Rod: Align and hand-thread the second rod into the opposite end of the coupling nut. Confirm that both rods meet in the center without overlapping threads.
Tighten with Tools: Using a wrench or torque tool, tighten each rod incrementally. Alternate between rods to ensure uniform pressure.
Verify Alignment: Check that the rods are straight and that the coupling nut sits flush without tilting.
Final Torque: Apply the recommended torque for the material and size of the coupling nut, following manufacturer specifications for industrial use or DIN standard nuts.
Following this stepwise approach minimizes the risk of stripped threads, misalignment, or loosening under load.
Even experienced technicians face challenges when installing coupling nuts. Some common issues include:
Cross-threading: Usually caused by misaligned rods. Solution: Always start threads by hand and verify rotation before using a wrench.
Insufficient engagement: Occurs when rods do not fully meet in the coupling nut. Solution: Measure rod lengths and thread depth before installation.
Over-tightening: Leads to thread stripping, especially with stainless steel or fine-threaded nuts. Solution: Use a calibrated torque wrench and follow specifications.
Corrosion or seizing: Long-term exposure may make removal difficult. Solution: Apply lubricant and consider stainless steel or coated nuts for heavy duty and outdoor applications.
Proactively addressing these challenges ensures long-lasting performance and reduces maintenance requirements.
Proper alignment is essential for the structural integrity of the coupling nut assembly. Misalignment can lead to uneven load distribution, increasing wear and potential failure. Key practices include:
Use a level or alignment tool to verify rod positions before tightening.
Apply torque gradually, alternating between rods to maintain balance.
Confirm that the nut is fully seated and threads are evenly engaged along the entire length.
By adhering to precise torque specifications, especially for industrial use and heavy duty applications, you protect both the coupling nut and the connected components from premature failure.
After installation, regular inspection and maintenance ensure continued performance:
Check for loosening or signs of thread wear periodically.
Reapply anti-seize compound for stainless steel or left hand thread nuts in high-friction or outdoor environments.
Replace damaged or worn coupling nuts immediately to prevent structural compromise.
Routine maintenance prolongs the life of the installation and minimizes downtime for industrial applications.
Installing a coupling nut is a straightforward process when approached with careful preparation, proper tool selection, and attention to alignment and torque. Choosing the right coupling nut—whether stainless steel, heavy duty, or DIN standard—ensures reliable performance for industrial use. By following structured installation steps and maintenance practices, you achieve secure, durable connections that withstand operational stress and environmental factors.
Q1: Can I install a left hand thread coupling nut using standard procedures?
A1: Yes, but reverse the rotation when threading. Left-hand threads tighten counterclockwise, so ensure torque tools are adjusted accordingly.
Q2: How do I avoid cross-threading during installation?
A2: Always hand-thread initially and ensure rods are aligned. Only use tools after confirming smooth rotation.
Q3: Are stainless steel coupling nuts more difficult to install?
A3: Slightly, due to higher friction. Using lubrication or anti-seize compound helps prevent binding and eases tightening.
Q4: How do I choose between a short and long coupling nut?
A4: Longer nuts provide more thread engagement, improving strength and alignment, especially in heavy duty applications.
Q5: What is the recommended torque for DIN standard coupling nuts?
A5: Follow DIN specifications based on material and rod diameter. Use a calibrated torque wrench for accuracy.
