Heavy machinery, critical infrastructure, and advanced structural engineering rely entirely on secure fastening systems to stay intact. You might assume component failure happens simply because of poor manufacturing. However, structural collapse usually stems from incorrect fastener specification rather than a raw product defect. Finding the exact hex bolt for a specific load profile prevents catastrophic shear, vibration loosening, or lateral slip.
This guide provides procurement teams and structural engineers an evidence-based framework for evaluating thread types, material grades, and compliance standards. We will explore how preload tension works mechanically, decode metric strength classes, and compare various alloys for extreme environmental exposure.
This resource assumes you operate in industrial or commercial B2B applications. We base our recommendations on established DIN, ISO, and UTS parameters. We built this guide to help you specify components confidently, avoid assembly delays, and secure heavy loads without risking expensive joint failure.
Mechanics over Mass: A hex bolt acts like a stiff spring; proper torque creates a "preload" tension that locks components together, preventing shear and lateral slip.
Threading Matters: Choose partially threaded (DIN 931) for maximum shear strength across the grip length, and fully threaded (DIN 933) for tapped holes and maximum pressure dispersion.
Material is Contextual: Grades dictate strength (e.g., Class 10.9), but extreme environments require specialty alloys like the Hastelloy C-4 hex bolt to prevent localized corrosion and failure.
Sizing Standardization: Matching the correct pitch (coarse vs. fine) and Across Flats (AF) dimension is critical to avoid cross-threading and assembly delays.
Let us compare the modern 6-sided design to legacy 4-sided square heads. Square heads offer only four flat parallel surfaces. They require a full 90-degree turn before a wrench can grab the next side. A hexagonal shape provides six distinct sides. This clever geometry creates a much tighter 60-degree approach angle.
This angle allows much faster tooling application inside confined structural spaces. Assembly workers can easily tighten fasteners inside narrow channels or recessed machine pockets where older square heads would simply jam. You need less rotational swing space to apply massive force.
You must understand fastening physics as a longitudinal rubber band effect. When you apply rotational torque, the shaft physically stretches. This invisible longitudinal stretch creates a massive clamping force known as the preload force.
Preload pulls the two mating materials together violently. This extreme pressure creates high joint friction. The friction ultimately resists all lateral shear forces. The bolt itself should not endure the sideways shearing pressure; the friction between the clamped plates handles that load.
Calculating the correct torque specification remains a non-negotiable step. Without accurate torque, the joint experiences rapid bolt fatigue. Insufficient preload allows the plates to shift back and forth. This microscopic movement forces the threaded shaft to act like a weak dowel pin. Eventually, repeated dynamic loading causes irreversible joint failure.
This structure features an unthreaded smooth section right below the head, called the grip length. You specify this variant for applications requiring extreme shear strength.
The unthreaded shank eliminates structural weak points known as stress risers. Threads naturally create tiny V-shaped notches in the metal. If you place threads directly across a moving shear plane, those notches concentrate physical stress and invite snapping. A smooth shank completely eliminates this localized weakness, offering maximum durability.

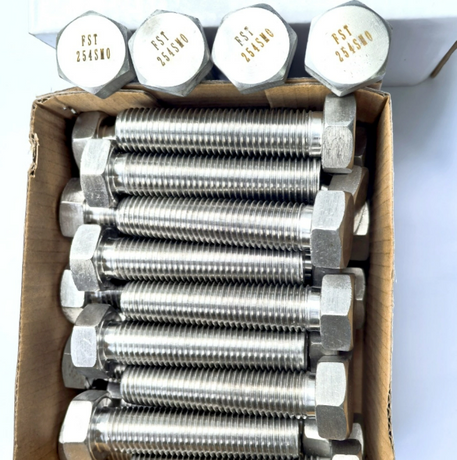

The threads on this variant run continuously from the underside of the head straight down to the tip. You use this type primarily for pre-tapped holes in metal blocks.
They accommodate adjustable assemblies perfectly. They also maximize grip force when you face non-standard grip lengths. You never have to worry about running out of thread before the joint becomes perfectly tight.
Procurement teams should memorize a straightforward rule. If the fastener passes cleanly through a clearance hole to take a nut on the other side, prioritize partial thread. If you thread it directly into a tapped blind hole inside a machine block, mandate full thread.
Metric fasteners utilize a precise numbering system. You will frequently see Grade 8.8, 10.9, and 12.9 stamped directly onto the head. You can calculate their capabilities easily using a standard rule.
Multiply the first number by 100. This equals the tensile strength in megapascals (MPa).
Multiply the second number by 10. This equals the yield strength percentage relative to the tensile limit.
Metric Grade | Tensile Strength (MPa) | Yield Strength (%) | Yield Point (MPa) | Typical Application |
|---|---|---|---|---|
8.8 | 800 | 80% | 640 | General structural steel and light machinery. |
10.9 | 1000 | 90% | 900 | Heavy automotive and dynamic load assemblies. |
12.9 | 1200 | 90% | 1080 | Extreme load-bearing equipment and heavy plant infrastructure. |
A2-70 (304 grade) handles standard outdoor environments and wet conditions flawlessly. A4-80 (316 grade) incorporates molybdenum. It easily survives harsh marine conditions and severe high-chloride exposure without rusting.
Extreme industrial conditions destroy standard metals rapidly. Highly corrosive chemical processing plants require advanced metallurgy. High-temperature environments will rapidly weaken standard carbon steel. You need specialized solutions to prevent pitting and stress corrosion cracking.
The Hastelloy C-4 hex bolt delivers massive resistance against aggressive chemicals. It acts as a premium solution for preventing localized corrosion in severe chemical applications. Engineers specify it explicitly for hot acid processing and chlor-alkali production facilities where standard stainless steel fails in weeks.
You must balance corrosion resistance against thread tolerance buildup when choosing finishes.
Hot Dip Galvanizing (HDG): Adds thick zinc layers for maximum outdoor life. However, this thickness requires over-tapped nuts to fit properly.
Zinc Plating: Offers thin, bright protection for indoor machinery without affecting thread tolerances.
Phosphating: Deposits a dark, friction-reducing layer ideal for internal engine components.
The ISO metric system relies on an "M" designation. A specification like M10x1.5 indicates a 10mm major outside diameter. The 1.5mm represents the thread pitch, meaning the precise distance between individual thread peaks.
The Imperial UTS system uses TPI, which stands for Threads Per Inch. A classic designation reads 1/4"-20. This indicates a quarter-inch diameter featuring exactly twenty threads per inch of length.
Coarse threads allow much faster assembly times. They easily resist cross-threading during hurried installations. They also reduce the chance of cold welding.
Fine threads provide a larger cross-sectional stress area. This grants them significantly higher tensile strength. They also feature a shallower helix angle. This tight angle offers far better resistance to vibration-induced loosening.
Procurement must face heavy operational realities on the shop floor. You must ensure bolt head AF sizes match your existing tooling and wrench inventories. Assembly floors face massive downtime if newly ordered hardware requires unstocked socket sizes.
Metric Thread Size (ISO) | Standard Across Flats (AF) Wrench Size | Common Pitch (Coarse) |
|---|---|---|
M6 | 10 mm | 1.00 mm |
M8 | 13 mm | 1.25 mm |
M10 | 17 mm | 1.50 mm |
M12 | 19 mm | 1.75 mm |
M16 | 24 mm | 2.00 mm |
These feature significantly larger head dimensions. They distribute heavy clamping loads over a much wider surface area. Civil engineers specify them heavily for structural steel infrastructure, bridge building, and high-pressure pipe flanges.
This design incorporates a built-in washer face directly under the head. It reduces total assembly time by eliminating separate loose washers. It disperses pressure effectively across softer materials. You can order serrated variants. These feature aggressive teeth under the flange that bite into the metal to prevent vibration back-out.
Manufacturers engineer these specialty components to snap off at a predetermined torque level. Once the hex head breaks away, it leaves a smooth, tamper-proof dome behind. High-security installations use them extensively to prevent unauthorized disassembly and theft.
These specialty components incorporate specialized EPDM or NBR rubber seals under a smooth head. Food-grade machinery and pharmaceutical processing equipment require them strictly. They completely seal the joint against moisture, preventing fluid ingress and hazardous bacterial contamination.
You need a standardized workflow to guarantee joint integrity across all structural builds.
Tolerance checks: Verify material grade markings and pitch dimensions before starting.
Hole preparation: Clear all metal shavings, burrs, and rust from the receiving clearance hole.
Alignment: Guide the fastener manually to ensure perfectly straight thread engagement.
Nut tightening: Spin the nut down smoothly to seat the connection firmly.
Final calibrated torque verification: Apply the exact clamping force using a verified torque wrench to achieve correct preload.
Galling happens frequently during installation. Threads undergo localized cold-welding due to extreme friction. Stainless steel and titanium alloys suffer from this disproportionately because of their oxide layers. We strongly recommend applying nickel or copper-based anti-seize lubricants before threading.
Thermal expansion causes hidden joint loosening. Joining dissimilar metals creates severe long-term risks. Different alloys expand at different rates under intense heat. This mismatched thermal movement rapidly degrades the initial preload tension, leaving the joint dangerously loose.
Demand strict batch traceability from your vendors. Require certified material test reports (MTRs) before accepting bulk deliveries. Ensure verifiable compliance with ISO or ASME dimensional tolerances. Counterfeit fasteners ruin structural integrity rapidly. Low-grade metal masquerading as high-tensile material causes catastrophic safety failures.
A hex bolt represents a precise engineering component, never just a simple bulk commodity. Safe, long-lasting, and reliable infrastructure relies entirely on proper procurement and specification. You must optimize your choice perfectly between DIN 931 partial threads and DIN 933 full threads. You must select the right material grade, whether you need standard 8.8 steel or a highly specialized Hastelloy alloy. You also must calculate precise preload torque to guarantee absolute joint stability.
Take proactive action today. Encourage your buying teams to consult standard parameter charts for exact wrench sizing. Download technical material data sheets before confirming any large orders. Contact specialized engineering support for bespoke sizing and alloy recommendations tailored to your toughest environments.
A: Manufacturing tolerances create the main difference. Hex cap screws feature a precision washer face directly under the head. They also possess chamfered points designed specifically for tight-tolerance applications. Standard hex bolts are rougher. Manufacturers design them strictly for use with nuts inside looser clearance holes.
A: A bolt passes entirely through unthreaded components. You secure it tightly on the other side using a nut. A set screw usually features full threading. You drive it directly into a pre-tapped hole within the receiving component to bind two parts together.
A: The triad of loosening includes under-torquing, constant vibration, and severe thermal cycling. Insufficient initial preload allows transverse slipping during machine operation. Changing temperatures cause metals to expand and contract unevenly. You can solve this by specifying fine-threaded, flanged, or serrated variants for high-movement environments.
A: You must maintain absolute zero tolerance for mixing systems. Visually similar sizes, like an imperial 5/16" and a metric M8, possess entirely different thread profiles and pitches. Forcing them together immediately causes severe cross-threading. This practice strips the threads, destroys the required preload, and guarantees rapid joint failure.
