Nuts are fundamental components in mechanical and structural assemblies, playing a crucial role in fastening and holding together different parts securely. They work in conjunction with bolts, screws, and threaded rods to create strong joints capable of withstanding various forces, such as tension, shear, and compression. Without reliable nuts, many engineering, construction, and industrial projects would face serious safety and performance challenges.
Among the various types of nuts available, two stand out due to their frequent use across industries: the coupling nut and the hex nut. Though they might look similar at first glance — both often having hexagonal external shapes and internal threads — they serve very distinct purposes in fastening technology. Understanding their differences is critical for engineers, technicians, builders, and buyers alike. Choosing the wrong type could lead to assembly failures, increased costs, or complicated maintenance.

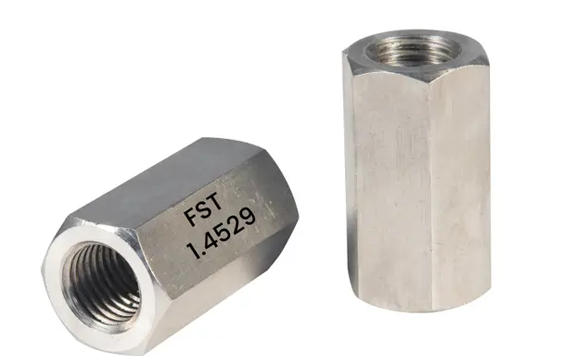

A coupling nut, sometimes called an extension nut, is a specialized fastener designed to join two externally threaded components — most commonly threaded rods or studs — end-to-end. The primary function of a coupling nut is to create a longer threaded connection without compromising strength or alignment.
Coupling nuts are longer than standard nuts, generally about two to five times the diameter of the threads they accommodate. Their length provides sufficient internal thread engagement on both ends, allowing two threaded rods to be screwed into the coupling nut from opposite sides, effectively connecting them into one continuous piece.
Externally, coupling nuts maintain a hexagonal shape similar to regular nuts. This hex shape allows standard wrenches or spanners to grip and tighten the nut securely. Some coupling nuts feature witness holes drilled through the body. These holes enable visual confirmation that the threaded rods have fully engaged inside, ensuring a proper and secure connection.
There are also variants known as reducing coupling nuts, which have different thread sizes or pitches on each end. These are designed to join rods or studs of dissimilar diameters or threading specifications, providing flexibility in retrofitting or repair scenarios.
Coupling nuts are widely used in:
Structural Steel Construction: For joining threaded rods to create long support columns, bracing systems, or suspension hangers.
HVAC Systems: Suspending ductwork or equipment by extending threaded rods from ceilings or beams.
Machinery and Equipment Frames: Adjusting or extending threaded rods in equipment assembly or custom fixtures.
Electrical Installations: Supporting conduit or cable trays in industrial and commercial buildings.
Modular or Prefabricated Systems: Where quick and adjustable lengthening of threaded rods is needed during assembly or onsite adjustments.
The coupling nut’s design ensures strong tensile load handling, making it ideal where threaded rod extensions must bear weight or resist pulling forces.
The hex nut is the most commonly recognized and used type of nut. Its name derives from its hexagonal shape, featuring six flat sides that allow easy tightening with standard hand tools.
Hex nuts are relatively short compared to coupling nuts, usually about the same thickness as the diameter of the thread. They are internally threaded to mate with bolts, screws, or threaded rods. The primary role of a hex nut is to secure these components against a surface or part, creating clamping force that holds assemblies together.
Hex nuts can be combined with washers or locking mechanisms (such as lock washers, nylon inserts, or prevailing torque nuts) to enhance resistance against loosening due to vibration or thermal cycling. They are known for their versatility, being suitable for nearly any fastening situation requiring simple, reliable clamping.
Hex nuts find applications in virtually every industry, including:
Machinery Assembly: Fastening parts on motors, gearboxes, and other equipment.
Automotive: Securing engine components, chassis parts, and body panels.
Construction: Used in steel frameworks, wood fixtures, and concrete anchors.
Household and DIY Projects: Furniture assembly, shelving, and mounting hardware.
Electrical and Electronics: Fastening panel components and enclosures.
Due to their widespread use, hex nuts are produced in many standard sizes and thread types, making them an essential stock item in hardware inventories.
Despite their similar hex shapes and threaded interiors, coupling nuts and hex nuts differ significantly in several aspects:
Coupling Nut: Long, tubular shape designed to engage two threaded rods simultaneously. The length ensures maximum thread engagement and alignment.
Hex Nut: Short, compact nut meant for clamping and securing a bolt or rod at one end.
Coupling Nut: Used exclusively to join two male-threaded components, effectively extending their length.
Hex Nut: Used to fasten or clamp components by tightening against one side of a bolted joint.
Coupling Nut: Designed for tensile loads along the axis of the joined rods, supporting pull and suspension forces.
Hex Nut: Handles clamping forces that hold parts together, resisting shear and vibration.
Coupling Nut: Requires precise alignment and threading of two rods; allows adjustments in length by controlling how far each rod is screwed in.
Hex Nut: Simpler installation; once tightened, it provides a fixed clamp with minimal adjustment capability.
Coupling Nut: Usually longer, sometimes with witness holes; might have different thread sizes in reducing types.
Hex Nut: Shorter and more compact, typically solid without holes.
Both coupling nuts and hex nuts come in a variety of materials and finishes tailored to different environments and strength requirements.
Carbon Steel: The most common material, offering good strength and affordability. Suitable for indoor and general applications.
Stainless Steel (304, 316): Provides excellent corrosion resistance, especially in outdoor, marine, and chemical environments.
Brass: Used where electrical conductivity or corrosion resistance is required.
Alloy Steel: High strength for heavy-duty or high-stress applications.
Nylon Insert or Plastic Nuts: Typically not coupling nuts, but hex nuts may include nylon inserts for locking.
Zinc Plating: Thin protective coating for moderate corrosion resistance.
Hot-Dip Galvanizing: Thick zinc coating for superior outdoor protection.
Black Oxide: Minimal corrosion resistance with a sleek black finish.
Phosphate Coating: Provides corrosion resistance and better paint adhesion.
Plain/Oiled: For indoor use where corrosion is not a concern.
Choosing the right material and finish depends on factors like environmental exposure, mechanical stress, and industry standards.
Choosing between a coupling nut and a hex nut depends largely on the application requirements.
Structural Extensions: When long threaded rods are needed, coupling nuts provide a strong, reliable means to join rods on site.
Suspended Systems: HVAC and piping supports frequently rely on coupling nuts to achieve exact suspension heights.
Machinery Adjustment: Custom frames or jigs often use coupling nuts to allow length tuning.
Retrofitting and Repairs: Coupling nuts connect new threaded parts to existing rods without replacement.
General Fastening: Securing bolts in machinery, automotive parts, and construction assemblies.
Vibration-Prone Assemblies: With locking washers or lock nuts, hex nuts maintain tight clamping under motion.
Furniture and Fixtures: Most household fastening relies on hex nuts for ease of assembly.
Electrical Panels: Securing panels and covers with bolts and hex nuts is common.
Consider a suspended lighting system in a commercial building. The threaded rods hanging from the ceiling may need to be lengthened to fit varying ceiling heights. Coupling nuts allow two rods to be joined seamlessly to achieve this. Once the rods are set, hex nuts secure the fixtures to mounting brackets, providing the clamping force needed to hold them firmly in place.
In summary, coupling nuts and hex nuts are both essential fasteners but are designed for fundamentally different tasks. The coupling nut’s role is to connect and extend threaded rods, providing tensile strength and length adjustability. The hex nut primarily functions as a fastening element, clamping parts together securely.
Properly distinguishing between these two can prevent costly mistakes and ensure the integrity of mechanical assemblies. When selecting fasteners, consider the specific requirements of your application—whether it demands rod extension, adjustable length, or secure clamping—and choose the nut accordingly.
For reliable, high-quality coupling nuts and hex nuts tailored to industrial and structural applications, partnering with experienced manufacturers like Taizhou Fastool Co., Ltd. guarantees performance and peace of mind.
