While fundamentally simple—a threaded fastener sporting a solid, six-sided head—specifying the wrong hex bolt can lead to structural shear, assembly delays, or catastrophic mechanical failure under load. Engineers and buyers often underestimate the complexity behind these common components. You cannot just pick a size and hope it holds. You must transition from basic definitions to strict engineering tolerances.
High-stress industrial and commercial applications require strict adherence to threading standards like DIN and ASME. They also demand specific material capabilities to withstand extreme operational forces. Choosing an incorrect physical tolerance or metallurgical grade puts entire structural assemblies at risk.
This article provides buyers and engineers with a rigorous evaluation framework. You will learn how to correctly specify, differentiate, and source these fasteners to guarantee structural integrity. We will explore mechanical profiles, material behaviors, and exact procurement strategies to optimize your next structural project.
Standard hex bolts prioritize structural holding power and are tightened via a nut, lacking the precision washer face and chamfered point of hex cap screws.
Threading configuration dictates performance: partial threads (DIN 931) maximize shear strength in the grip area, while full threads (DIN 933/Tap Bolts) distribute tension evenly.
"One-way downward compatibility" governs assembly: a precision hex cap screw can often replace a standard hex bolt, but reversing this substitution risks component damage due to wider tolerance ranges.
Material specification dictates lifecycle costs; standard environments rely on ASTM A307 steel, while severe chemical applications demand specialty alloys like a Hastelloy C-4 hex bolt.

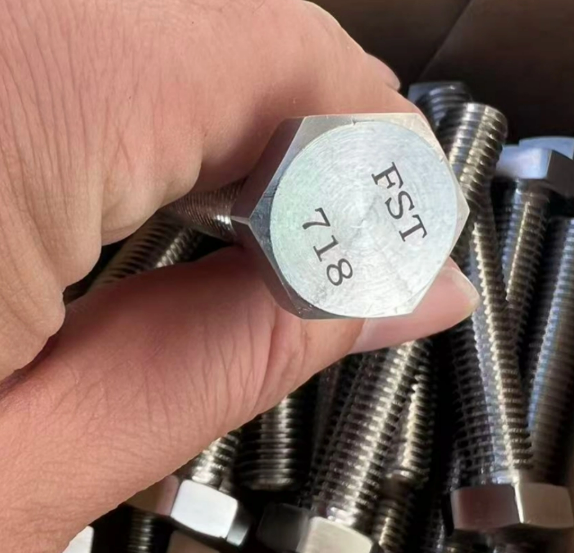

We define this fastener as an externally threaded component designed for insertion through holes in assembled parts. You normally tighten or release it by torquing a nut on the opposite side. Unlike screws driven directly into tapped holes, these components rely on the clamping force generated between the bolt head and the nut. This fundamental mechanical anatomy makes them the primary choice for heavy-duty structural joining.
The six-sided head design offers a distinct physics advantage. The six uniform flat contact surfaces allow for significantly higher torque application. You can use standard wrenches or socket wrenches much more effectively. Compared to traditional four-sided square bolts, the hexagonal shape reduces the required turning angle from 90 degrees to just 60 degrees. This specific geometry becomes incredibly valuable when you work in confined clearances. Mechanics and assemblers can easily readjust their tools in tight structural joints.
Industry standardization ensures reliable performance across diverse manufacturing sectors. We look to ASME B18.2.1 as the governing standard in North America. This standard defines the macro-dimensions and accepted variances for industrial fasteners. It dictates exactly how wide the head must be, how the threads are pitched, and the acceptable runout. Adhering to these published standards prevents catastrophic failures in load-bearing environments.
Procurement teams frequently confuse these overlapping categories. The primary difference lies in physical tolerance. Standard bolts possess a wider body diameter tolerance. For example, a 1/4-inch diameter component might feature a 0.023-inch variance. In contrast, hex cap screws maintain strict precision. They allow only a tight 0.005-inch variance. This tight tolerance makes cap screws necessary for high-precision OEM machinery. Standard bolts remain better suited for broader structural construction.
You can identify the differences visually if you know what to look for. These physical markers directly impact how the fastener interacts with mating surfaces.
Washer Face & Bearing Surface: Hex cap screws feature a distinct washer face under the head. They have strict limits on bearing surface runout to protect mating surfaces. Standard bolts do not have this feature. They require separate external washers to prevent surface scoring during installation.
Chamfered Ends: Cap screws feature a chamfered point. This beveled tip prevents cross-threading when inserted into tapped holes. Standard variants typically have a flat, unchamfered end. Manufacturers design these flat ends strictly for nut-mating applications.
Tap bolts represent another point of frequent confusion. If a fastener is fully threaded from the tip to the head regardless of its length, industry standards classify it as a Tap Bolt. However, you must note a short-length overlap. Cap screws measuring 1-1/4 inches or shorter are often fully threaded. At that specific size, a cap screw functions identically to a tap bolt.
Engineering reality relies on a strict "one-way compatibility" rule. A precision cap screw can safely replace a standard bolt in high-stress environments. The tighter tolerances will not harm the existing clearance holes. However, you must never reverse this substitution. Substituting a standard bolt into an assembly designed for a cap screw risks destroying the component's integrity. The looser tolerances and lack of a washer face will quickly damage precision machinery.
Fastener Comparison Chart
Feature | Standard Hex Bolt | Hex Cap Screw | Tap Bolt |
|---|---|---|---|
Tolerance Level | Wide (e.g., 0.023" variance) | Strict (e.g., 0.005" variance) | Moderate to Wide |
Washer Face | No | Yes | No |
Chamfered Point | No (Flat end) | Yes | No |
Threading | Usually partial (if long) | Partial (if > 1-1/4") | Fully threaded always |
When you specify a DIN 931 fastener, you select a partially-threaded component. These feature a "grip length." We define this grip length as the unthreaded, solid shank situated immediately below the head. This design offers a massive engineering advantage. The solid shoulder eliminates the weak points inherent in threaded grooves. Thread roots naturally concentrate stress. By placing a solid shank in the shear plane, you achieve vastly superior resistance to lateral shear stress. Engineers heavily rely on this configuration in structural applications like steel framing and highway structures.
The DIN 933 standard dictates a continuous thread structure. The threads extend entirely from the tip to the bearing surface under the head. This configuration provides a distinct engineering advantage. It works best for applications requiring maximum grip strength across the entire fastener. You should specify fully-threaded fasteners for tension-heavy loads. They also excel when inserted into pre-tapped holes where adjustable alignment is necessary.
Engineers use a standard rule-of-thumb to calculate required thread lengths on standard partially-threaded bolts. You can use this formula to verify your specifications:
For bolts measuring 6 inches or less: Thread Length = (2 x Diameter) + 1/4 inch.
For bolts longer than 6 inches: Thread Length = (2 x Diameter) + 1/2 inch.
Applying this formula ensures the solid grip length perfectly aligns with your joint's shear plane. Proper alignment prevents catastrophic shearing under heavy dynamic loads.
Material selection directly dictates mechanical limits. Standard carbon steel serves as the industry baseline. You will typically encounter Grades 2, 5, and 8. Grade 2 suits light commercial use. Grade 8 offers exceptional tensile strength for heavy machinery. Manufacturers also apply standard anti-corrosive coatings to these base metals. Bright zinc-plated, black oxide, and hot-dipped galvanized finishes offer varying levels of basic rust resistance for standard indoor and outdoor environments.
For elevated moisture and mild corrosive environments, 304 and 316 stainless steel become necessary. Grade 304 handles basic ambient moisture effectively. Grade 316 contains added molybdenum to resist marine environments and mild chlorides. However, you must watch out for galling. Galling acts as a form of cold welding. The friction generated during installation can cause stainless threads to fuse together permanently. We highly recommend applying anti-seize lubricants during assembly to prevent this severe issue.
Severe industrial conditions quickly degrade standard and stainless steels. For these extremes, you must introduce specialty alloys. Environments facing extreme high temperatures, localized pitting, and aggressive chemical processing demand advanced metallurgy. In facilities handling acetic acids or chlorine environments, an upgrade to a Hastelloy C-4 hex bolt provides a premier solution. This highly specialized nickel-chromium-molybdenum alloy resists intense thermal and chemical attacks. Specifying this alloy represents a proactive investment in lifecycle longevity. It reliably prevents catastrophic chemical leaks and structural fatigue in the most punishing sectors.
Specifying the perfect fastener requires a methodical approach. Follow this numbered implementation logic to secure the right components for your assembly.
Evaluating Load Requirements: Assess the primary forces acting on the joint. Determine whether the primary force is shear or tension. Shear forces necessitate a specific grip length or shoulder to prevent snapping. Tension forces require you to calculate and specify an adequate material tensile strength (like Grade 8 steel).
Verifying Mating Surface Compatibility: Analyze the materials you are bolting together. Determine if the lack of a washer face on a standard component will damage softer mating materials like aluminum or wood. If yes, you must mandate the use of external washers. Alternatively, you can specify hex cap screws instead to protect the surface.
Vibration Mitigation Risks: Acknowledge dynamic environmental conditions. Standard fasteners without locking mechanisms can quickly loosen under heavy dynamic loads. We highly recommend integrating lock washers or nylon-insert nuts. During the assembly stage, chemical threadlockers also provide excellent vibration resistance.
Supplier Vetting: Never compromise on supply chain integrity. Ensure your vendor provides full metallurgical traceability. They must comply with the necessary dimensional standards like ISO, DIN, ASME, or ASTM. Strict vetting prevents the costly integration of counterfeit or sub-grade fasteners into critical structural projects.
A Highly Specific Component: A hex bolt is never just a universal commodity. It serves as a highly specific, mathematically defined structural component critical to assembly integrity.
Match to the Environment: Successful procurement relies entirely on matching the exact threading profile, physical tolerances, and metallurgical grade to the operational environment. You must scale your choice from standard carbon steel up to specialty alloys based on chemical and thermal exposure.
Audit Your Inventory: We prompt you to audit your current fastener Bill of Materials (BOM). Review your specified tolerances and grip lengths immediately.
Consult the Experts: Partner with a certified supply partner. They will help you ensure specification accuracy and prevent the costly integration of mismatched tolerances in your production line.
A: Yes, you can use them in pre-tapped holes. However, hex cap screws or tap bolts remain preferred for this application. Cap screws feature chamfered ends, which actively prevent dangerous cross-threading. Standard bolts have flat ends designed specifically for nut mating.
A: That smooth section is known as the grip length or the shoulder. Engineers design this unthreaded shank specifically to absorb heavy lateral shear forces. It provides a solid cross-section that prevents the fastener from snapping at a weakened thread line.
A: You measure the length starting directly from the flat bearing surface underneath the head. You extend the measurement down to the very tip of the threaded end. Do not include the height of the hexagonal head in this measurement.
A: Grade 8 offers significantly higher tensile and yield strength. Manufacturers use it primarily for heavy machinery and extreme load-bearing structures. Grade 5 is comparatively more ductile. It remains highly suited for standard commercial applications and general automotive assemblies.
