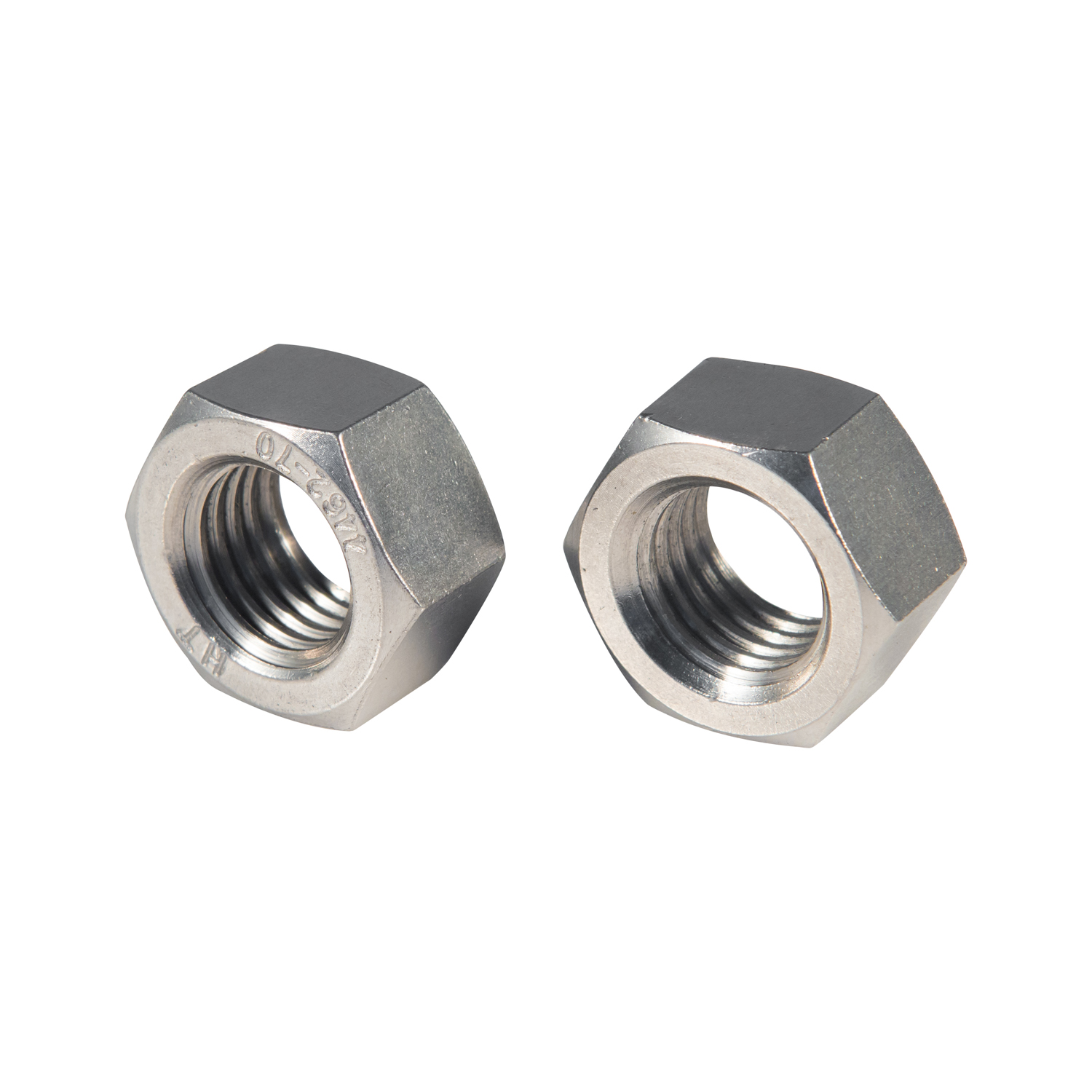

High-quality duplex nuts cannot be identified by color, weight, magnetism, or a polished surface alone. Reliable evaluation requires evidence that the correct alloy was used, the duplex microstructure was preserved, the threads meet dimensional requirements, the nut can withstand its specified proof load, and the delivered lot remains traceable to inspection records. For industrial projects, quality is a chain connecting raw material, manufacturing, testing, marking, packaging, and supplier documentation.
Inspection can only confirm requirements that have been clearly defined. The purchase order should state the exact alloy designation, dimensional standard or drawing, nominal size, thread pitch, tolerance class, nut style, property class, finish, marking, certificate type, sampling plan, and any additional testing.
“Duplex nut” is not a sufficient description. Duplex 2205 may be identified as UNS S32205 or EN 1.4462, while super duplex 2507 is commonly UNS S32750 or 1.4410. If alternatives or dual-certified material are acceptable, the order should say so. Otherwise, substitutions should require written approval.
Each production lot should be linked to a raw-material heat number. The heat number connects the finished nuts to a material test certificate and allows the buyer to trace chemistry and mechanical properties. Traceability may be carried by individual marking, batch tags, sealed bags, box labels, or a combination depending on nut size and project requirements.
If packages are opened and mixed, traceability can be lost. Incoming inspection should check that labels, certificates, quantities, and markings agree before material enters general stock.
An EN 10204 3.1 certificate is frequently requested for project fasteners. Review the producer, heat number, material specification, product form, chemical composition, mechanical test results, and authorization. Confirm that reported chemistry meets the exact grade rather than only a general 2205 or 2507 label.
A raw-material certificate does not automatically prove that the finished nut meets its proof-load or dimensional requirements. Separate reports may be needed for finished-fastener testing, PMI, hardness, thread inspection, and surface examination.
Portable PMI can detect many alloying elements and is effective for finding mixed grades. X-ray fluorescence instruments commonly identify chromium, nickel, and molybdenum, allowing an inspector to distinguish 316, 2205, and 2507 in many cases.
PMI has limitations. Standard handheld XRF does not directly measure nitrogen, which is important to duplex grade qualification. Surface contamination, curvature, coatings, calibration, and operator technique also affect readings. PMI should verify lot identity against traceable certificates, not replace laboratory chemistry.
State how many nuts will be tested, which lots are covered, where the readings will be taken, and how results will be recorded. For critical orders, 100 percent PMI may be requested; for others, statistical sampling may be appropriate. The acceptance plan should address what happens if one sample fails.
The internal thread is the most important functional feature. Use calibrated go and no-go plug gauges for the specified thread and tolerance. The go gauge checks minimum functional size and should enter as required; the no-go gauge limits oversize condition under the governing inspection rule.
Visual inspection should identify torn flanks, burrs, double threading, incomplete threads, damaged starts, chips, laps, or contamination. A nut that gauges correctly but has severely rough threads may still gall during installation.
Measure width across flats, nut height, bearing-face diameter, chamfer, flange dimensions, and any drawing-specific features. The bearing face should be reasonably flat and square to the thread axis. Thin nuts, heavy nuts, coupling nuts, and cap nuts require different dimensional checks.
For coupling nuts, verify total length and usable thread depth. For cap nuts, confirm that the bolt cannot bottom before the joint is clamped. Custom parts may need coordinate measurement or dedicated fixtures.
Proof-load testing is the principal method for evaluating nut load capacity under many fastener standards. The nut is loaded on a suitable test mandrel to the specified force and must not strip or fail. The required value depends on size, thread, property class, and nut style.
Hardness testing can support process control and identify abnormal material, but it is not a substitute for proof load. Tensile properties reported for the source bar also do not directly prove finished-nut performance.
ISO 3506-2 covers mechanical and physical properties for corrosion-resistant stainless steel nuts within its scope and includes duplex grades. Other projects may use ASTM, ASME, DIN, or customer requirements. Test fixtures, loading procedure, sampling, and acceptance must follow the cited standard.
For oversized or custom nuts outside a standard range, the purchaser and manufacturer should agree on an engineering test or calculated acceptance basis before production.
Duplex stainless steel requires suitable phase balance and freedom from harmful intermetallic phases. Incorrect heat treatment or excessive thermal exposure during manufacturing can reduce toughness and localized-corrosion resistance even when chemistry is correct.
Critical specifications may require ferrite measurement, micrographic examination, corrosion testing, or evidence of solution heat treatment. These tests are not necessary for every commercial nut, but they may be appropriate for offshore, sour-service, desalination, or high-consequence chemical projects.
Duplex stainless steel is magnetic because it contains ferrite. A magnet can distinguish it from some fully austenitic stainless products, but it cannot reliably identify 2205 versus 2507, prove chemistry, or confirm correct heat treatment. Many other alloys are also magnetic.
Inspect for cracks, seams, laps, folds, tool marks, heat tint, embedded particles, rust staining, and damage to thread starts. Surface defects at the first loaded threads can concentrate stress. Bearing-face damage can create uneven friction and preload.
Stainless fasteners should be protected from carbon-steel contamination. Shared blasting media, steel wire brushes, dirty racks, grinding dust, and mixed storage can deposit free iron. Project specifications may require pickling, passivation, cleaning, or a defined bright finish.
A highly polished nut can still be the wrong alloy or have oversized threads. A slightly dull machined finish may be acceptable if dimensions, material, and surface integrity meet the specification. Quality decisions should be evidence-based rather than appearance-based.
Marking may include manufacturer identification, material grade, property class, and heat or lot code. Small nuts may have limited marking space, making controlled package labels more important. Confirm that marking meets the applicable standard and purchase order.
Packaging should keep grades and heats separate, protect threads from impact, and prevent moisture or chloride contamination. Labels should remain legible through transport and warehouse handling. For export projects, packaging may also need pallet, seaworthy, desiccant, or fumigation requirements.
A capable supplier should demonstrate raw-material approval, heat segregation, process routing, calibrated gauges, controlled machining, inspection records, nonconformance handling, and final lot release. Duplex materials require suitable tooling and knowledge of work hardening, heat exposure, and contamination control.
Ask how the supplier prevents grade mixing, controls outsourced heat treatment or testing, and links certificates to finished lots. Review sample reports before the order when documentation is critical.
Quality claims such as “premium,” “marine grade,” or “100 percent inspected” need definitions. Determine which characteristics were inspected, by what method, at what sampling rate, and against which acceptance criteria. A supplier’s willingness to provide traceable records is more informative than promotional language.
Warning signs include certificates without heat numbers, identical test values repeated across unrelated lots, mixed grade labels, missing property standards, handwritten changes, untraceable PMI reports, damaged threads, and packages containing multiple markings. Another concern is a quotation that lists several alloys as interchangeable without price or technical distinction.
Unexpectedly low pricing may mean that proof-load testing, PMI, custom marking, certification, or controlled packaging is excluded. Clarify the scope before comparing suppliers.
At receipt, verify purchase order, packing list, quantity, size, grade, heat, marking, and certificate. Inspect packaging for water damage and contamination. Select samples for dimensions, thread gauges, appearance, PMI, hardness, or proof load according to the agreed plan.
Quarantine material until required documents and tests are accepted. Record inspector, instrument identification, calibration status, sample location, results, and disposition. Maintain lot separation after acceptance.
High-quality duplex nuts have the correct certified alloy, controlled duplex microstructure, accurate threads, suitable geometry, verified proof-load capability, clean surfaces, clear marking, and complete traceability. No single test provides all of this evidence. Certificate review, PMI, dimensional inspection, mechanical testing, and supplier process control work together.
FASTOOL manufactures duplex and super duplex nuts, bolts, studs, washers, and custom fasteners for industrial project orders. Buyers can define grade, standard, property class, marking, certificate, PMI, proof load, dimensional reports, and packaging so that each delivered lot is supported by the quality evidence required for the intended application.
